Kennametal KENN 4053386

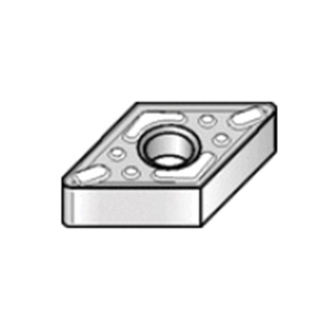

Kennametal 4053386 Kenloc Turning Insert, ANSI Code: DNMG432P KCU10, DNMG Insert, 150408 Insert, Rhomboid Shape, Positive Rake, For Use On Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel, Carbide
Invoice description:
Dnmg432p Kcu10
Pack Size: 5
UNSPSC:
23242105
Manufacturer PN: 4053386
$23.72 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Series: Kenloc, DNMG Insert, 150408 Insert, Rhomboid, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15.5 mm Length, Positive Rake, P Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: KCU10, ANSI Code: DNMG432P KCU10, ISO Code: DNMG150408P KCU10, 55 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-AlTiN Coated, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Features
- Medium geometry with positive rake face for chip control in difficult materials
Specifications
ANSI CodeDNMG432P KCU10
ChipbreakerP
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Hole Diameter5.16 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size150408
Insert StyleDNMG
ISO CodeDNMG150408P KCU10
Length15.5 mm
Manufacturers GradeKCU10
MaterialCarbide
RakePositive
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness4.76 mm
Additional Information
Country of OriginUS
