Kennametal KENN 1868419

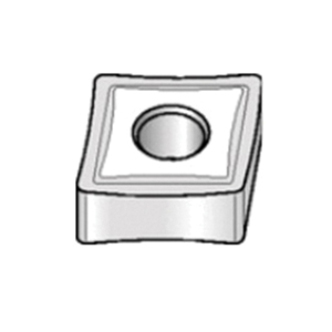

Kennametal 1868419 Kenloc Turning Insert, ANSI Code: CNGP430 KC5010, CNGP Insert, Material Grade: C3/C4, 120401 Insert, Rhomboid Shape, Negative Rake, Neutral Cutting, Carbide, Manufacturers Grade: KC5010
Pack Size: 2
UNSPSC:
23242105
Manufacturer PN: 1868419
$19.42 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Series: Kenloc, CNGP Insert, 120401 Insert, Rhomboid, 1.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, Negative Rake, 0.1 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: KC5010, ANSI Code: CNGP430 KC5010, ISO Code: CNGP120401 KC5010, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-AlTiN Coated, Material Grade: C3/C4, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Specifications
ANSI CodeCNGP430 KC5010
Corner Radius0.1 mm
Cutting DirectionNeutral
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Hole Diameter5.16 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size120401
Insert StyleCNGP
ISO CodeCNGP120401 KC5010
Length12.9 mm
Manufacturers GradeKC5010
MaterialCarbide
Material GradeC3/C4
Maximum Depth of Cut1.25 mm
RakeNegative
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness4.76 mm
