Kennametal KENN 1817614

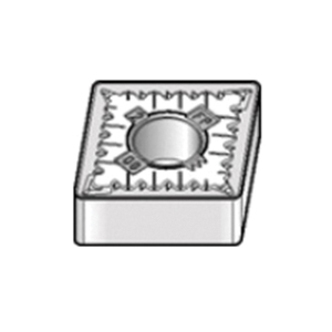

Kennametal 1817614 Kenloc Turning Insert, ANSI Code: CNMG432FP KC5010, CNMG Insert, Material Grade: C3/C4, 120408 Insert, Rhomboid Shape, 15 deg Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: KC5010
Pack Size: 10
UNSPSC:
23242105
Manufacturer PN: 1817614
$14.10 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Series: Kenloc, CNMG Insert, 120408 Insert, Rhomboid, 1.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 15 deg Positive Rake, FP Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: KC5010, ANSI Code: CNMG432FP KC5010, ISO Code: CNMG120408FP KC5010, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-AlTiN Coated, Material Grade: C3/C4, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Specifications
ANSI CodeCNMG432FP KC5010
ChipbreakerFP
Corner Radius0.8 mm
Cutting DirectionNeutral
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Hole Diameter5.16 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size120408
Insert StyleCNMG
ISO CodeCNMG120408FP KC5010
Length12.9 mm
Manufacturers GradeKC5010
MaterialCarbide
Material GradeC3/C4
Maximum Depth of Cut1.25 mm
Rake15 deg Positive
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness4.76 mm
