Kennametal KENN 1865436

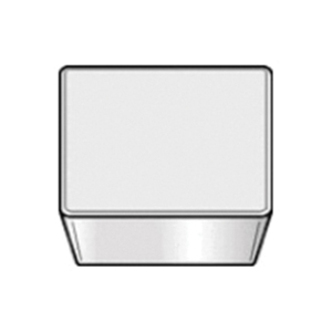

Kennametal 1865436 Kendex Turning Insert, ANSI Code: SPG321 KC5010, SPG Insert, Material Grade: C3/C4, 090304 Insert, Squared Shape, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: KC5010
Invoice description:
Spg321 Kc5010 Turning In Ser
Pack Size: 10
UNSPSC:
23242105
Manufacturer PN: 1865436
$16.05 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Series: Kendex, SPG Insert, 090304 Insert, Squared, 1.25 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 3.18 mm Thickness, 9.53 mm Width, 9.53 mm Length, Positive Rake, 0.4 mm Corner Radius, Manufacturers Grade: KC5010, ANSI Code: SPG321 KC5010, ISO Code: SPGN090304 KC5010, 90 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, PVD-AlTiN Coated, Material Grade: C3/C4, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel and Steel
Specifications
ANSI CodeSPG321 KC5010
Corner Radius0.4 mm
Cutting DirectionNeutral
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel and Steel
Included Angle90 deg
Inscribed Circle9.53 mm
Insert Size090304
Insert StyleSPG
ISO CodeSPGN090304 KC5010
Length9.53 mm
Manufacturers GradeKC5010
MaterialCarbide
Material GradeC3/C4
Maximum Depth of Cut1.25 mm
RakePositive
Relief Angle11 deg
SeriesKendex
ShapeSquared
Thickness3.18 mm
Width9.53 mm
