Kennametal KENN 1871168

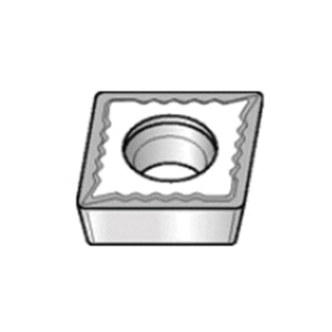

Kennametal 1871168 Screw-On Turning Insert, ANSI Code: CPMT3251UF KC5010, CPMT Insert, Material Grade: C3/C4, 09T304 Insert, Rhomboid Shape, 5 deg Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: KC5010
Invoice description:
Cpmt 3(2.5)1 Uf Kc5010 Insert 5/box I2825
UPC: 662497810069
Pack Size: 5
UNSPSC:
23242105
Manufacturer PN: 1871168
$21.20 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Screw-On, CPMT Insert, 09T304 Insert, Rhomboid, 1.25 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 3.97 mm Thickness, 9.67 mm Length, 5 deg Positive Rake, UF Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: KC5010, ANSI Code: CPMT3251UF KC5010, ISO Code: CPMT09T304UF KC5010, 80 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, PVD-AlTiN Coated, Material Grade: C3/C4, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Features
- Finishing geometry for multiple material groups
Specifications
ANSI CodeCPMT3251UF KC5010
ChipbreakerUF
Corner Radius0.4 mm
Cutting DirectionNeutral
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Hole Diameter4.4 mm
Included Angle80 deg
Inscribed Circle9.53 mm
Insert Size09T304
Insert StyleCPMT
ISO CodeCPMT09T304UF KC5010
Length9.67 mm
Manufacturers GradeKC5010
MaterialCarbide
Material GradeC3/C4
Maximum Depth of Cut1.25 mm
Rake5 deg Positive
Relief Angle11 deg
ShapeRhomboid
Thickness3.97 mm
TypeScrew-On
Additional Information
Country of OriginUS
