Kennametal KENN 2435320

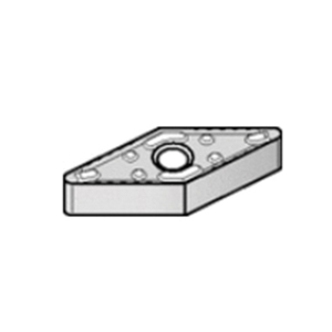

Kennametal 2435320 Kenloc Turning Insert, ANSI Code: VNMG331P KC5010, VNMG Insert, Material Grade: C3/C4, 160404 Insert, Rhomboid Shape, 10 deg Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: KC5010
Invoice description:
Vnmg331p Kc5010
Pack Size: 5
UNSPSC:
23242105
Manufacturer PN: 2435320
$19.08 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Series: Kenloc, VNMG Insert, 160404 Insert, Rhomboid, 1.25 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 4.76 mm Thickness, 16.61 mm Length, 10 deg Positive Rake, P Chipbreaker, 0.4 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: KC5010, ANSI Code: VNMG331P KC5010, ISO Code: VNMG160404P KC5010, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-AlTiN Coated, Material Grade: C3/C4, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Features
- Medium geometry with positive rake face for chip control in difficult materials
Specifications
ANSI CodeVNMG331P KC5010
ChipbreakerP
Corner Radius0.4 mm
Cutting DirectionNeutral
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Hole Diameter3.81 mm
Included Angle35 deg
Inscribed Circle9.53 mm
Insert Size160404
Insert StyleVNMG
ISO CodeVNMG160404P KC5010
Length16.61 mm
Manufacturers GradeKC5010
MaterialCarbide
Material GradeC3/C4
Maximum Depth of Cut1.25 mm
Rake10 deg Positive
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness4.76 mm
