Kennametal KENN 1819441

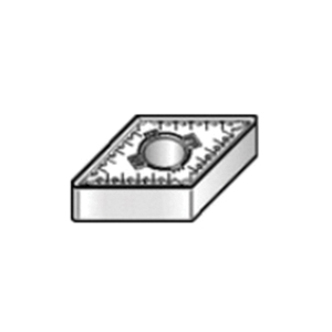

Kennametal 1819441 Kenloc Turning Insert, ANSI Code: DNMG432FP KC5010, DNMG Insert, Material Grade: C3/C4, 150408 Insert, Rhomboid Shape, 15 deg Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: KC5010
Invoice description:
Dnmg432fp Kc5010
Pack Size: 5
UNSPSC:
23242105
Manufacturer PN: 1819441
$23.72 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Series: Kenloc, DNMG Insert, 150408 Insert, Rhomboid, 1.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15.5 mm Length, 15 deg Positive Rake, FP Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: KC5010, ANSI Code: DNMG432FP KC5010, ISO Code: DNMG150408FP KC5010, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-AlTiN Coated, Material Grade: C3/C4, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Features
- Finishing geometry with positive rake face for chip control in difficult materials
Specifications
ANSI CodeDNMG432FP KC5010
ChipbreakerFP
Corner Radius0.8 mm
Cutting DirectionNeutral
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Hole Diameter5.16 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size150408
Insert StyleDNMG
ISO CodeDNMG150408FP KC5010
Length15.5 mm
Manufacturers GradeKC5010
MaterialCarbide
Material GradeC3/C4
Maximum Depth of Cut1.25 mm
Rake15 deg Positive
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness4.76 mm
