Kennametal KENN 1785735

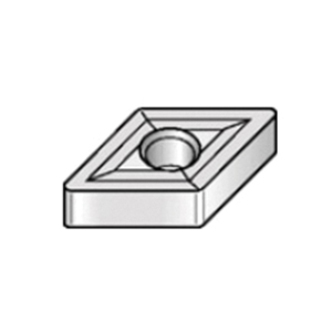

Kennametal 1785735 Kenloc Turning Insert, ANSI Code: DNGP441 KC5410, DNG Insert, Material Grade: C3/C4, 150604 Insert, Rhomboid Shape, Negative Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: KC5410
UPC: 662497687791
Pack Size: 5
UNSPSC:
23242105
Manufacturer PN: 1785735
$27.51 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Series: Kenloc, DNG Insert, 150604 Insert, Rhomboid, 1.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 15.5 mm Length, Negative Rake, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: KC5410, ANSI Code: DNGP441 KC5410, ISO Code: DNGP150604 KC5410, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiB2 Coated, Material Grade: C3/C4, For Use On: Non-Ferrous Metals
Specifications
ANSI CodeDNGP441 KC5410
Corner Radius0.4 mm
Cutting DirectionNeutral
FinishPVD-TiB2 Coated
For Use OnNon-Ferrous Metals
Hole Diameter5.16 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size150604
Insert StyleDNG
ISO CodeDNGP150604 KC5410
Length15.5 mm
Manufacturers GradeKC5410
MaterialCarbide
Material GradeC3/C4
Maximum Depth of Cut1.25 mm
RakeNegative
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness6.35 mm
