Kennametal KENN 4050454

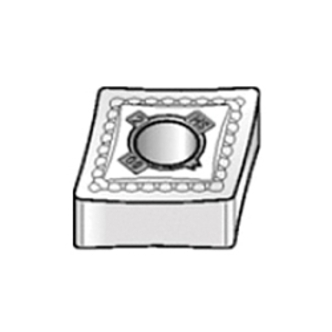

Kennametal 4050454 Kenloc Turning Insert, ANSI Code: CNMG432MS KCU25, CNMG Insert, 120408 Insert, Rhomboid Shape, Neutral Cutting, For Use On Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel, Carbide
Invoice description:
Insert Cnmg120408ms Kcu2 5
UNSPSC:
23242105
Manufacturer PN: 4050454
Factory OrderEstimated to ship in 14 days
--Price Unavailable--
Kennametal Turning Insert, Series: Kenloc, CNMG Insert, 120408 Insert, Rhomboid, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, MS Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: KCU25, ANSI Code: CNMG432MS KCU25, ISO Code: CNMG120408MS KCU25, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-AlTiN Coated, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Features
- Medium geometry utilized in high temperature and stainless applications
Specifications
ANSI CodeCNMG432MS KCU25
ChipbreakerMS
Corner Radius0.8 mm
Cutting DirectionNeutral
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Hole Diameter5.16 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size120408
Insert StyleCNMG
ISO CodeCNMG120408MS KCU25
Length12.9 mm
Manufacturers GradeKCU25
MaterialCarbide
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness4.76 mm
