Kennametal KENN 4045166

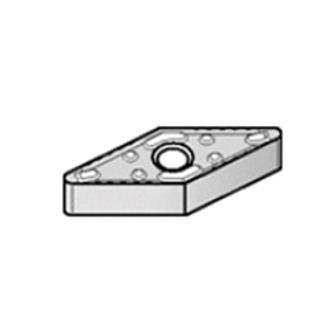

Kennametal 4045166 Kenloc Turning Insert, ANSI Code: VNMG332P KCU10, VNMG Insert, 160408 Insert, Rhomboid Shape, For Use On Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel, Carbide, Manufacturers Grade: KCU10
Invoice description:
Insert Vnmg332p Kcu10
UNSPSC:
23242105
Manufacturer PN: 4045166
Factory OrderEstimated to ship in 14 days
--Price Unavailable--
Kennametal Turning Insert, Series: Kenloc, VNMG Insert, 160408 Insert, Rhomboid, 9.53 mm Inscribed Circle, 4.76 mm Thickness, 16.61 mm Length, P Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: KCU10, ANSI Code: VNMG332P KCU10, ISO Code: VNMG160408P KCU10, 35 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-AlTiN Coated, For Use On: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Features
- Medium geometry with positive rake face for chip control in difficult materials
Specifications
ANSI CodeVNMG332P KCU10
ChipbreakerP
Corner Radius0.8 mm
FinishPVD-AlTiN Coated
For Use OnCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Hole Diameter3.81 mm
Included Angle35 deg
Inscribed Circle9.53 mm
Insert Size160408
Insert StyleVNMG
ISO CodeVNMG160408P KCU10
Length16.61 mm
Manufacturers GradeKCU10
MaterialCarbide
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness4.76 mm
Additional Information
Country of OriginUS
