Kennametal KENN 3761046

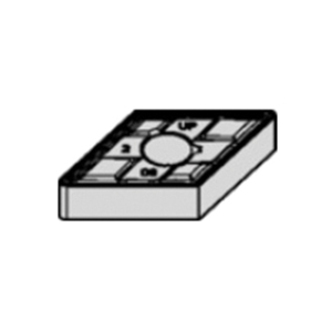

Kennametal 3761046 Kenloc Turning Insert, ANSI Code: DNMG432UP KCM25, DNMG Insert, Material Grade: C1/C2, 150408 Insert, Rhomboid Shape, 15 deg Positive Rake, For Use On Steel and Stainless Steel, Carbide, Manufacturers Grade: KCM25
Invoice description:
Dnmg432up Kcm25
Pack Size: 5
UNSPSC:
23242105
Manufacturer PN: 3761046
$23.72 EA
Factory OrderEstimated to ship in 14 days
Kennametal Turning Insert, Series: Kenloc, DNMG Insert, 150408 Insert, Rhomboid, 1.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15.5 mm Length, 15 deg Positive Rake, UP Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: KCM25, ANSI Code: DNMG432UP KCM25, ISO Code: DNMG150408UP KCM25, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: C1/C2, For Use On: Steel and Stainless Steel
Features
- Roughing geometry for multiple material groups
Specifications
ANSI CodeDNMG432UP KCM25
ChipbreakerUP
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3 Coated
For Use OnSteel and Stainless Steel
Hole Diameter5.16 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size150408
Insert StyleDNMG
ISO CodeDNMG150408UP KCM25
Length15.5 mm
Manufacturers GradeKCM25
MaterialCarbide
Material GradeC1/C2
Maximum Depth of Cut1.25 mm
Rake15 deg Positive
Relief Angle0 deg
SeriesKenloc
ShapeRhomboid
Thickness4.76 mm
Additional Information
Country of OriginUS
