Iscar ISCAR 5598816

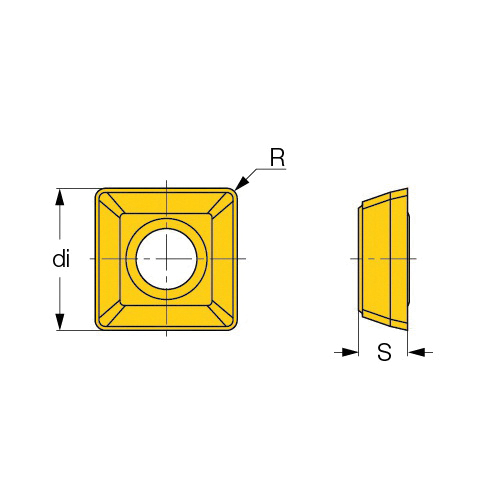

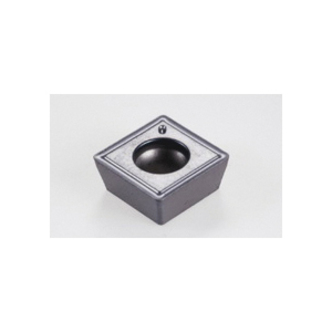

Iscar 5598816 DR-TWIST Single Sided Indexable Drill Insert, Squared Shape, Material Grade: C2, C3, C5, C6, 09T306 Insert, SOMT Insert, 3.81 mm THK, 9 mm Inscribed Circle, For Use On Alloy Steels and Stainless Steel, Manufacturers Grade: IC328
Invoice description:
Somt 09t306-gf Ic328
Factory Order
Iscar Indexable Drill Insert, Single Sided, Series: DR-TWIST, SOMT Insert, 09T306 Insert, Squared, 9 mm Inscribed Circle, 3.81 mm Thickness, 9 mm Width, 9 mm Length, GF Chipbreaker, 0.6 mm Corner Radius, Manufacturers Grade: IC328, 90 deg Included Angle, ISO Code: SOMT 09T306-GF IC328, Alloy Steels and Stainless Steel For Use On, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6
Features
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
Specifications
ApplicationFor low-to-medium feed rates applications
ChipbreakerGF
Corner Radius0.6 mm
FinishPVD-TiCN Coated
For Use OnAlloy Steels and Stainless Steel
Included Angle90 deg
Inscribed Circle9 mm
Insert Size09T306
Insert StyleSOMT
ISO CodeSOMT 09T306-GF IC328
Length9 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeC2, C3, C5, C6
SeriesDR-TWIST
ShapeSquared
Thickness3.81 mm
TypeSingle Sided
Width9 mm
