Iscar ISCAR 5503255

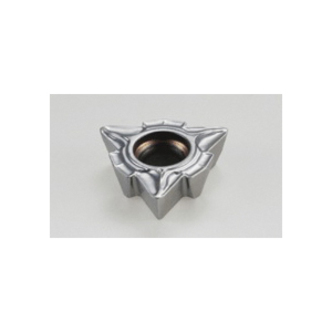

Iscar 5503255 DZDRILLS Single Sided Indexable Drill Insert, ANSI Code: WOLH31 SW IC328, Trigon Shape, Material Grade: C2, C3, C5, C6, 31 Insert, WOLH Insert, 3.81 mm THK, 10 mm Inscribed Circle, For Use On Alloy Steels and Stainless Steel
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5503255
$23.18 EA
Factory OrderEstimated to ship in 14 days
Iscar Indexable Drill Insert, Single Sided, Series: DZDRILLS, WOLH Insert, 31 Insert, Trigon, 10 mm Inscribed Circle, 3.81 mm Thickness, 0.2362 in Length, SW Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC328, 80 deg Included Angle, ANSI Code: WOLH31 SW IC328, ISO Code: WOLH 06T304-SW IC328, For Use On: Alloy Steels and Stainless Steel, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6
Features
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
- Inserts for DZ drills with serrated cutting edges and a wide chipformer
Specifications
ApplicationFor chip splitting at medium-to-high feeds applications
ANSI CodeWOLH31 SW IC328
ChipbreakerSW
Corner Radius0.4 mm
FinishPVD-TiCN Coated
For Use OnAlloy Steels and Stainless Steel
Included Angle80 deg
Inscribed Circle10 mm
Insert Size31
Insert StyleWOLH
ISO CodeWOLH 06T304-SW IC328
Length0.2362 in
Manufacturers GradeIC328
MaterialCarbide
Material GradeC2, C3, C5, C6
SeriesDZDRILLS
ShapeTrigon
Thickness3.81 mm
TypeSingle Sided
