Iscar ISCAR 5503075

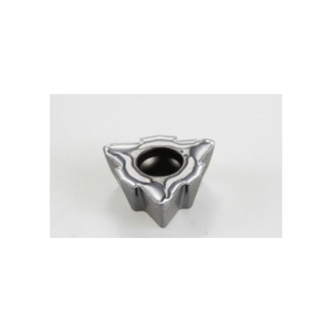

Iscar 5503075 DZDRILLS Single Sided Indexable Drill Insert, Trigon Shape, Material Grade: C2, C3, C5, C6, 05T304 Insert, WOLH Insert, 3.81 mm THK, 8 mm Inscribed Circle, For Use On Alloy Steels and Stainless Steel, Manufacturers Grade: IC328
Invoice description:
Wolh 2.5-1-sw Ic328
Factory Order
Iscar Indexable Drill Insert, Single Sided, Series: JABRO Solid2 JS554, WOLH Insert, 05T304 Insert, Trigon, 8 mm Inscribed Circle, 3.81 mm Thickness, SW Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC328, 80 deg Included Angle, ISO Code: WOLH 05T304-SW IC328, Alloy Steels and Stainless Steel For Use On, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6
Features
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
- Inserts for DZ drills with serrated cutting edges and a wide chipformer
Specifications
ApplicationFor chip splitting at medium-to-high feeds applications
ChipbreakerSW
Corner Radius0.4 mm
FinishPVD-TiCN Coated
For Use OnAlloy Steels and Stainless Steel
Included Angle80 deg
Inscribed Circle8 mm
Insert Size05T304
Insert StyleWOLH
ISO CodeWOLH 05T304-SW IC328
Manufacturers GradeIC328
MaterialCarbide
Material GradeC2, C3, C5, C6
SeriesDZDRILLS
ShapeTrigon
Thickness3.81 mm
TypeSingle Sided
Additional Information
Country of OriginIL
