Iscar ISCAR 5504743

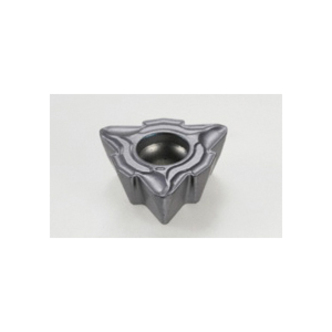

Iscar 5504743 DZDRILLS Indexable Drill Insert, ANSI Code: WOLH2.5-1-SW IC908, Trigon Shape, 251 Insert, WOLH Insert, 3.81 mm THK, 8 mm Inscribed Circle, Manufacturers Grade: IC908
Invoice description:
Wolh 2.5-1-sw Ic908
Pack Size: 10
UNSPSC:
23242511
Manufacturer PN: 5504743
$21.93 EA
Factory OrderEstimated to ship in 7 days
Iscar Indexable Drill Insert, Series: DZDRILLS, WOLH Insert, 251 Insert, Trigon, 8 mm Inscribed Circle, 3.81 mm Thickness, 5 mm Length, SW Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC908, 80 deg Included Angle, ANSI Code: WOLH2.5-1-SW IC908, ISO Code: WOLH 05T304-SW IC908, Carbide, PVD Coated
Features
- Inserts for DZ drills with serrated cutting edges and a wide chipformer
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor chip splitting at medium-to-high feeds applications
ANSI CodeWOLH2.5-1-SW IC908
ChipbreakerSW
Corner Radius0.4 mm
FinishPVD Coated
Included Angle80 deg
Inscribed Circle8 mm
Insert Size251
Insert StyleWOLH
ISO CodeWOLH 05T304-SW IC908
Length5 mm
Manufacturers GradeIC908
MaterialCarbide
SeriesDZDRILLS
ShapeTrigon
Thickness3.81 mm
Additional Information
Country of OriginIL
