Iscar ISCAR 5504598

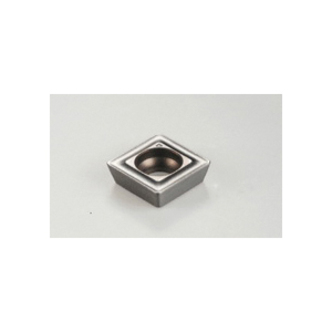

Iscar 5504598 DR-TWIST Single Sided Indexable Drill Insert, Squared Shape, Material Grade: C2, C3, C5, C6, 60204 Insert, SOMT Insert, 1.96 mm THK, 6 mm Inscribed Circle, For Use On Alloy Steels and Stainless Steel, Manufacturers Grade: IC328
Invoice description:
Somt 060204-dt Ic328
Factory Order

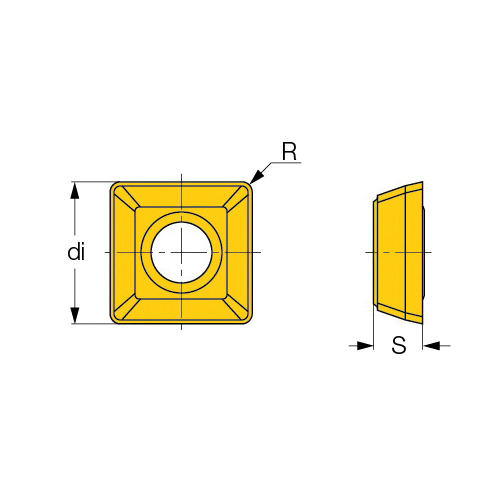

Iscar Indexable Drill Insert, Single Sided, SOMT Insert, 60204 Insert, Squared, 6 mm Inscribed Circle, 1.96 mm Thickness, 6 mm Width, 6 mm Length, DT Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC328, 90 deg Included Angle, ISO Code: SOMT 060204-DT IC328, Alloy Steels and Stainless Steel For Use On, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6
Features
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
Specifications
ApplicationFor medium-to-high feed rates general applications
ChipbreakerDT
Corner Radius0.4 mm
FinishPVD-TiCN Coated
For Use OnAlloy Steels and Stainless Steel
Included Angle90 deg
Inscribed Circle6 mm
Insert Size60204
Insert StyleSOMT
ISO CodeSOMT 060204-DT IC328
Length6 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeC2, C3, C5, C6
SeriesDR-TWIST
ShapeSquared
Thickness1.96 mm
TypeSingle Sided
Width6 mm
