Iscar ISCAR 5502941

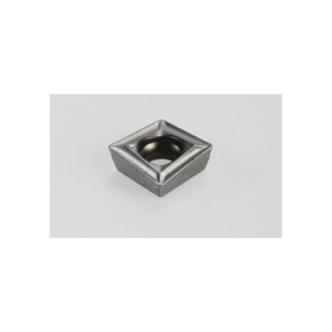

Iscar 5502941 DRDRILLS Indexable Drill Insert, Special Parallelogram Shape, 60204 Insert, XCGT Insert, 0.101 in THK, 0.243 in Inscribed Circle, Manufacturers Grade: IC350
Invoice description:
Xomt 060204-dt Ic350
Factory Order
Iscar Indexable Drill Insert, Series: DRDRILLS, XCGT Insert, 60204 Insert, Special Parallelogram, 0.243 in Inscribed Circle, 0.101 in Thickness, DT Chipbreaker, 0.016 in Corner Radius, Manufacturers Grade: IC350, ISO Code: XOMT 060204-DT IC350, Carbide, PVD Coated
Features
- Grade IC350 - for central and peripheral insert, on most applications, with sufficient coolant
Specifications
ApplicationFor DR drills and A-SXFOR/L boring bars
ChipbreakerDT
Corner Radius0.016 in
FinishPVD Coated
Inscribed Circle0.243 in
Insert Size60204
Insert StyleXCGT
ISO CodeXOMT 060204-DT IC350
Manufacturers GradeIC350
MaterialCarbide
SeriesDRDRILLS
ShapeSpecial Parallelogram
Thickness0.101 in
Additional Information
Country of OriginIL
