Iscar ISCAR 5503256

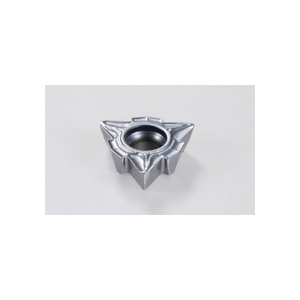

Iscar 5503256 DZDRILLS Single Sided Indexable Drill Insert, ANSI Code: WOLH31 SW IC350, Trigon Shape, Material Grade: K, P, 31 Insert, WOLH Insert, 3.81 mm THK, 10 mm Inscribed Circle, Manufacturers Grade: IC350
Invoice description:
Wolh 3-1-sw Ic350
Factory Order
Iscar Indexable Drill Insert, Single Sided, Series: DZDRILLS, WOLH Insert, 31 Insert, Trigon, 10 mm Inscribed Circle, 3.81 mm Thickness, 0.2362 in Length, SW Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC350, 80 deg Included Angle, ANSI Code: WOLH31 SW IC350, ISO Code: WOLH 06T304-SW IC350, Carbide, PVD Coated, Material Grade: K, P
Features
- Grade IC350 - for central and peripheral insert, on most applications, with sufficient coolant
- Inserts for DZ drills with serrated cutting edges and a wide chipformer
Specifications
ApplicationFor chip splitting at medium-to-high feeds applications
ANSI CodeWOLH31 SW IC350
ChipbreakerSW
Corner Radius0.4 mm
FinishPVD Coated
Included Angle80 deg
Inscribed Circle10 mm
Insert Size31
Insert StyleWOLH
ISO CodeWOLH 06T304-SW IC350
Length0.2362 in
Manufacturers GradeIC350
MaterialCarbide
Material GradeK, P
SeriesDZDRILLS
ShapeTrigon
Thickness3.81 mm
TypeSingle Sided
Additional Information
Country of OriginIL
