Iscar ISCAR 5503823
Iscar 5503823 DZDRILLS Single Sided Indexable Drill Insert, Trigon Shape, Material Grade: C2, C3, C5, C6, 06T304 Insert, WOLH Insert, 3.81 mm THK, 10 mm Inscribed Circle, For Use On Alloy Steels and Stainless Steel, Manufacturers Grade: IC328
Factory Order

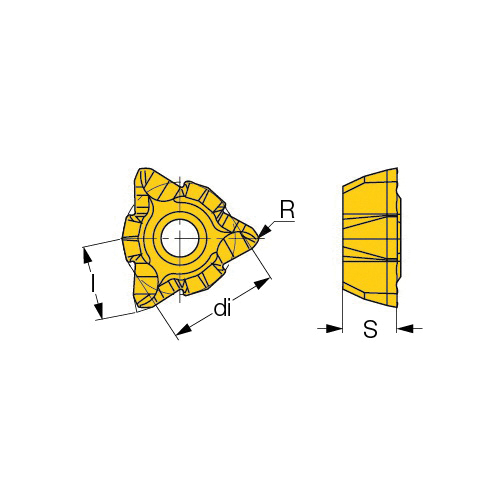

Iscar Indexable Drill Insert, Single Sided, Series: DZDRILLS, WOLH Insert, 06T304 Insert, Trigon, 10 mm Inscribed Circle, 3.81 mm Thickness, GF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC328, 80 deg Included Angle, ISO Code: WOLH 06T304-GF IC328, Alloy Steels and Stainless Steel For Use On, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6
Features
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
- Inserts for DZ drills with serrated cutting edges and a wide chipformer
Specifications
ApplicationFor chip splitting at low-to-medium feeds applications
ChipbreakerGF
Corner Radius0.4 mm
FinishPVD-TiCN Coated
For Use OnAlloy Steels and Stainless Steel
Included Angle80 deg
Inscribed Circle10 mm
Insert Size06T304
Insert StyleWOLH
ISO CodeWOLH 06T304-GF IC328
Manufacturers GradeIC328
MaterialCarbide
Material GradeC2, C3, C5, C6
SeriesDZDRILLS
ShapeTrigon
Thickness3.81 mm
TypeSingle Sided
