Iscar ISCAR 5510161

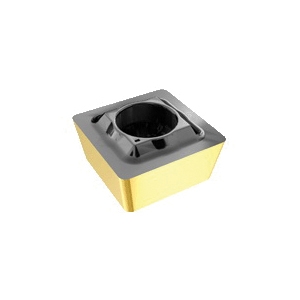

Iscar 5510161 DR-TWIST Indexable Drill Insert, Squared Shape, Material Grade: P15-P30, 9306 Insert, SOMT Insert, 3.81 mm THK, 9 mm Inscribed Circle, For Use On Carbon Steel and Soft Materials, Manufacturers Grade: IC808
Invoice description:
Somt 09t306-hd Ic808
Pack Size: 10
UNSPSC:
23242511
Manufacturer PN: 5510161
$23.78 EA
Factory OrderEstimated to ship in 7 days

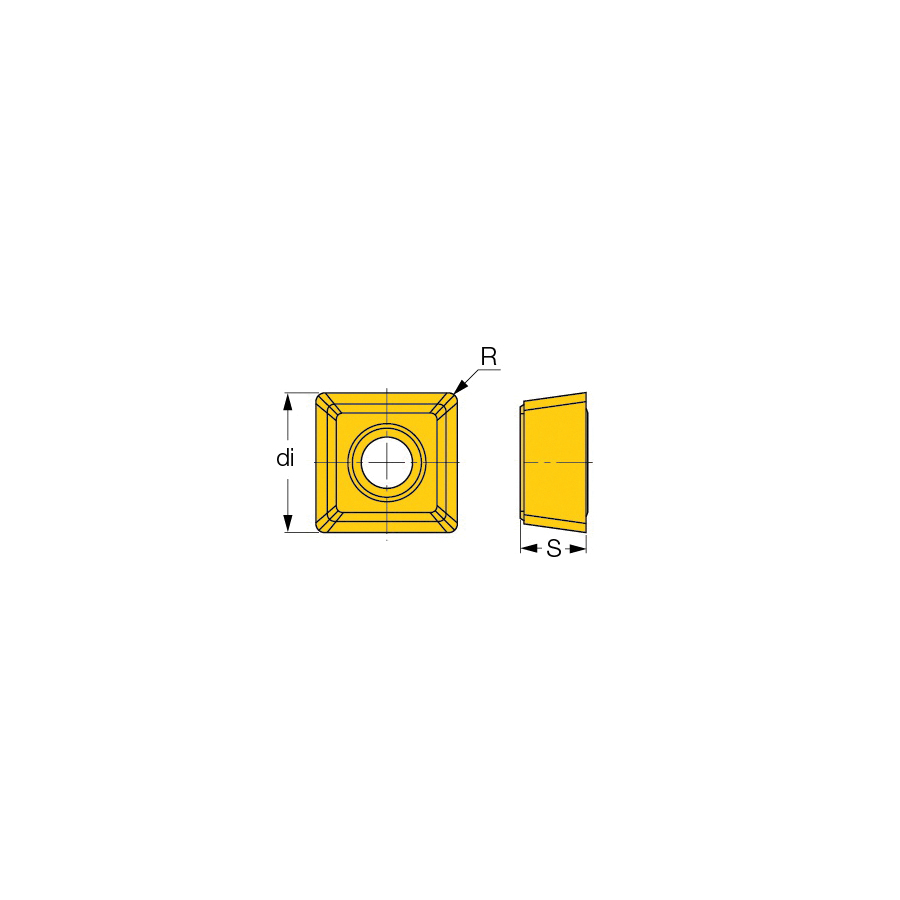

Iscar Indexable Drill Insert, Series: DR-TWIST, SOMT Insert, 9306 Insert, Squared Shape, 9 mm Inscribed Circle, 3.81 mm Thickness, 9 mm Width, 9 mm Length, HD Chipbreaker, 0.6 mm Corner Radius, Manufacturers Grade: IC808, 90 deg Included Angle, ISO Code: SOMT 09306-HD IC808, For Use On: Carbon Steel and Soft Materials, Carbide, PVD-TiAlN Coated, Material Grade: P15-P30
Features
- Grade IC808 - a hard, fine grain substrate with excellent chipping resistance, combined with a new "SUMO TEC" TiAlN PVD coating
- Provides high wear resistance
- Recommended for a very wide range of materials
Specifications
ApplicationFor general applications at medium-to-high feed rates
ChipbreakerHD
Corner Radius0.6 mm
FinishPVD-TiAlN Coated
For Use OnCarbon Steel and Soft Materials
Included Angle90 deg
Inscribed Circle9 mm
Insert Size9306
Insert StyleSOMT
ISO CodeSOMT 09306-HD IC808
Length9 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeP15-P30
SeriesDR-TWIST
ShapeSquared
Thickness3.81 mm
Width9 mm
Additional Information
Country of OriginIL
