Iscar ISCAR 5508048

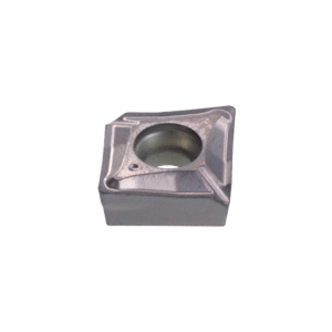

Iscar 5508048 Single Sided Indexable Drill Insert, Special Parallelogram Shape, Material Grade: H, K, M, P, S, 10T308 Insert, XCMT Insert, 3.97 mm THK, 10.5 mm Inscribed Circle, Manufacturers Grade: IC908
Invoice description:
Xcmt 10t308-mf Ic908
Factory Order
Iscar Indexable Drill Insert, Single Sided, XCMT Insert, 10T308 Insert, Special Parallelogram, 10.5 mm Inscribed Circle, 3.97 mm Thickness, 10 1/2 in Length, MF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC908, 85 deg Included Angle, ISO Code: XCMT 10T308-MF IC908, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- Two cutting edges for hard materials and interrupted cut
- Low cutting forces due to high cutting edges and positive angles
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor DR-MF multifunction tools
ChipbreakerMF
Corner Radius0.8 mm
FinishPVD Coated
Included Angle85 deg
Inscribed Circle10.5 mm
Insert Size10T308
Insert StyleXCMT
ISO CodeXCMT 10T308-MF IC908
Length10 1/2 in
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
ShapeSpecial Parallelogram
Thickness3.97 mm
TypeSingle Sided
