Iscar ISCAR 5507880

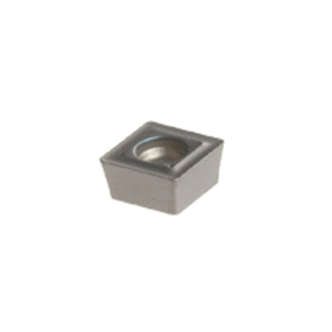

Iscar 5507880 DR-TWIST Indexable Drill Insert, Squared Shape, Material Grade: C1, C2, C6, C7, 60304 Insert, SOMX Insert, 3.2 mm THK, 6.2 mm Inscribed Circle, Manufacturers Grade: IC808
Invoice description:
Somx 060304-dt Ic808 Drill Inserts
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5507880
$22.83 EA
Factory OrderEstimated to ship in 7 days

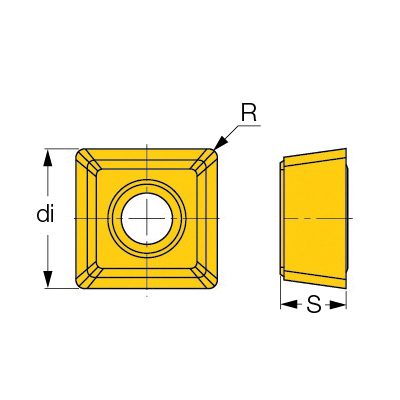

Iscar Indexable Drill Insert, Series: DR-TWIST, SOMX Insert, 60304 Insert, Squared Shape, 6.2 mm Inscribed Circle, 3.2 mm Thickness, 6.2 mm Width, 6.2 mm Length, DT Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC808, 90 deg Included Angle, ISO Code: SOMX 060304-DT IC808, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7
Features
- Grade IC808 - a hard, fine grain substrate with excellent chipping resistance, combined with a new "SUMO TEC" TiAlN PVD coating
- Provides high wear resistance
- Recommended for a very wide range of materials
Specifications
ApplicationFor general applications at medium-to-high feed rates
ChipbreakerDT
Corner Radius0.4 mm
FinishPVD-TiAlN Coated
Included Angle90 deg
Inscribed Circle6.2 mm
Insert Size60304
Insert StyleSOMX
ISO CodeSOMX 060304-DT IC808
Length6.2 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesDR-TWIST
ShapeSquared
Thickness3.2 mm
Width6.2 mm
