Iscar ISCAR 5507143

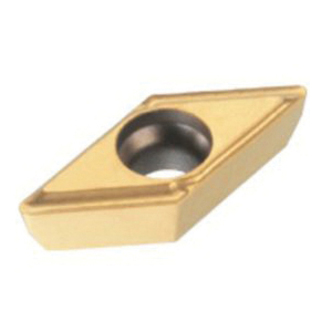

Iscar 5507143 PRE-THREAD Indexable Drill Insert, Parallelogram Shape, 30204 Insert, AOMT Insert, 1.59 mm THK, For Use On High Temperature Alloys, Hardened Steel and Stainless Steel, Manufacturers Grade: IC1008

UNSPSC: 23242511
Manufacturer PN: 5507143
$14.52 EA
Factory Order
Estimated to ship in 14 days
QTY:

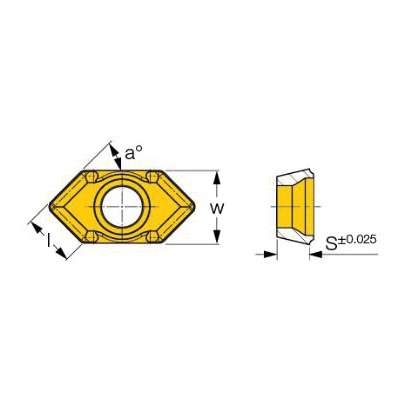

Iscar Indexable Drill Insert, Series: PRE-THREAD, AOMT Insert, 30204 Insert, Parallelogram, 1.59 mm Thickness, 4 mm Width, 2.8 mm Length, DT Chipbreaker, Manufacturers Grade: IC1008, 85 deg Included Angle, Neutral Hand, ISO Code: AOMT 030204-N-45DT IC1008, High Temperature Alloys, Hardened Steel and Stainless Steel For Use On, Carbide, PVD-TiAlN+TiN Coated

Specifications

ApplicationFor low-to-medium speed, iterrupted cut
ChipbreakerDT
FinishPVD-TiAlN+TiN Coated
For Use OnHigh Temperature Alloys, Hardened Steel and Stainless Steel
Hand of InsertNeutral
Included Angle85 deg
Insert Size30204
Insert StyleAOMT
ISO CodeAOMT 030204-N-45DT IC1008
Length2.8 mm
Manufacturers GradeIC1008
MaterialCarbide
SeriesPRE-THREAD
ShapeParallelogram
Thickness1.59 mm
Width4 mm
