Iscar ISCAR 5506626

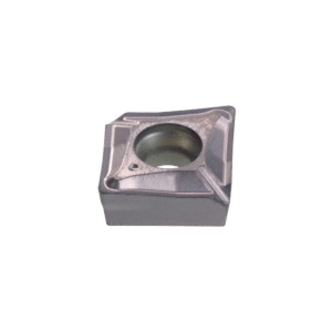

Iscar 5506626 Indexable Drill Insert, Special Parallelogram Shape, 70304 Insert, XCMT Insert, 3.18 mm THK, 7.5 mm Inscribed Circle, Manufacturers Grade: IC908
Invoice description:
Xcmt 070304-mf Ic908
Factory Order

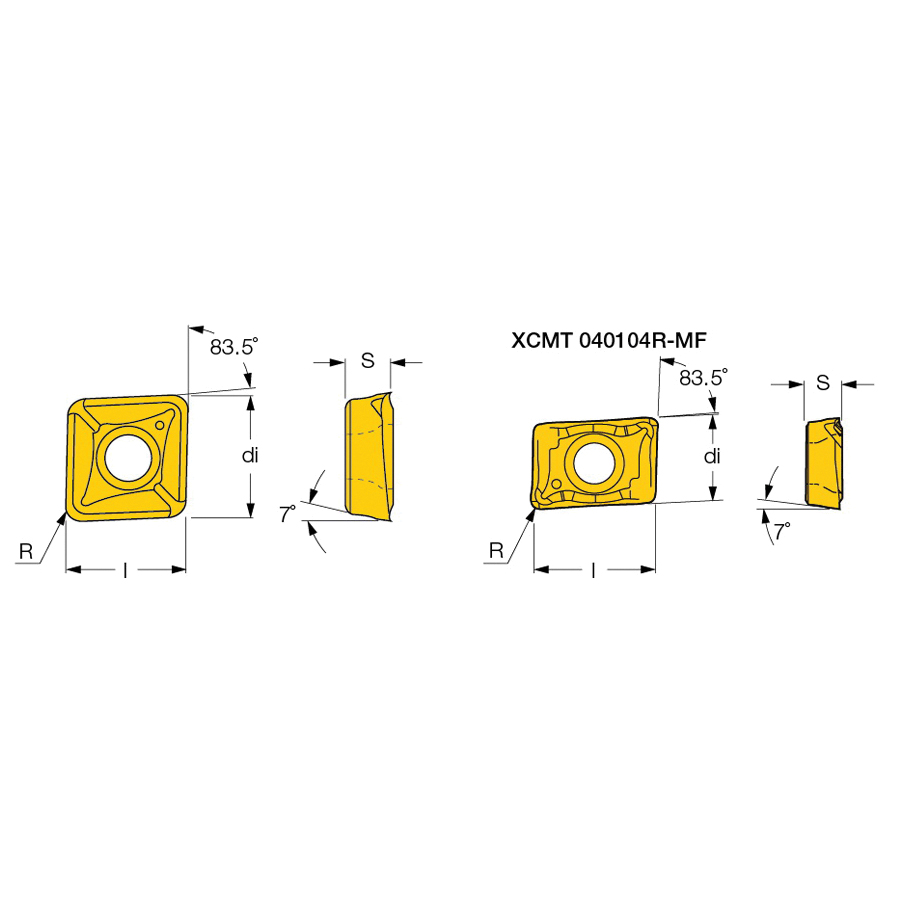

Iscar Indexable Drill Insert, XCMT Insert, 70304 Insert, Special Parallelogram, 7.5 mm Inscribed Circle, 3.18 mm Thickness, 7.5 mm Length, MF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC908, 83.5 deg Included Angle, ISO Code: XCMT 070304-MF IC908, Carbide, PVD Coated
Features
- Two cutting edges for hard materials and interrupted cut
- Low cutting forces due to high cutting edges and positive angles
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor DR-MF multifunction tools
ChipbreakerMF
Corner Radius0.4 mm
FinishPVD Coated
Included Angle83.5 deg
Inscribed Circle7.5 mm
Insert Size70304
Insert StyleXCMT
ISO CodeXCMT 070304-MF IC908
Length7.5 mm
Manufacturers GradeIC908
MaterialCarbide
ShapeSpecial Parallelogram
Thickness3.18 mm
