Iscar ISCAR 5506614

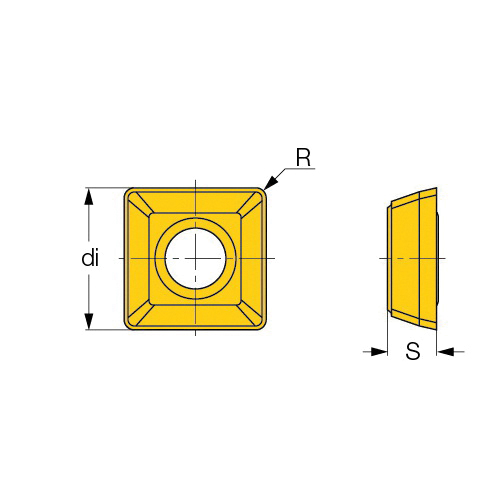

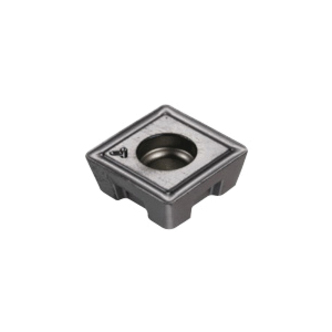

Iscar 5506614 DR-TWIST Single Sided Indexable Drill Insert, Squared Shape, Material Grade: K, P, 09T306 Insert, SOMT Insert, 3.81 mm THK, 9 mm Inscribed Circle, Manufacturers Grade: IC9080
Invoice description:
Somt 09t306-dt Ic9080
Factory Order
Iscar Indexable Drill Insert, Single Sided, Series: DR-TWIST, SOMT Insert, 09T306 Insert, Squared, 9 mm Inscribed Circle, 3.81 mm Thickness, 9 mm Width, 9 mm Length, DT Chipbreaker, 0.6 mm Corner Radius, Manufacturers Grade: IC9080, 90 deg Included Angle, ISO Code: SOMT 09T306-DT IC9080, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P
Features
- Grade IC9080 - a hard fine grain substrate with MTCVD alpha Al2O3 coating
- Excellent chipping and wear resistance
- Recommended for high speed drilling of cast iron and steel, to be used for the peripheral insert on DR drills
Specifications
ApplicationFor medium-to-high feed rates general applications
ChipbreakerDT
Corner Radius0.6 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Included Angle90 deg
Inscribed Circle9 mm
Insert Size09T306
Insert StyleSOMT
ISO CodeSOMT 09T306-DT IC9080
Length9 mm
Manufacturers GradeIC9080
MaterialCarbide
Material GradeK, P
SeriesDR-TWIST
ShapeSquared
Thickness3.81 mm
TypeSingle Sided
Width9 mm
Additional Information
Country of OriginIL
