Iscar ISCAR 5506338

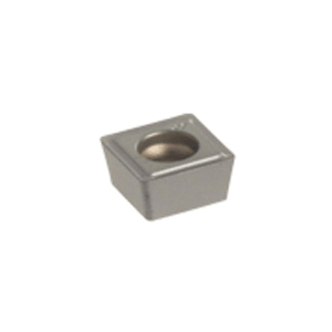

Iscar 5506338 DR-TWIST Indexable Drill Insert, Squared Shape, Material Grade: C1, C2, C6, C7, 50204 Insert, SOMX Insert, 2.4 mm THK, 5.4 mm Inscribed Circle, For Use On Soft Materials, Manufacturers Grade: IC908
Invoice description:
Somx 050204-gf Ic908
Factory Order
Iscar Indexable Drill Insert, Series: DR-TWIST, SOMX Insert, 50204 Insert, Squared Shape, 5.4 mm Inscribed Circle, 2.4 mm Thickness, 5.4 mm Width, 5.4 mm Length, GF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC908, 90 deg Included Angle, ISO Code: SOMX 050204-GF IC908, For Use On: Soft Materials, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7
Features
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor low-to-medium feed rates applications
ChipbreakerGF
Corner Radius0.4 mm
FinishPVD-TiAlN Coated
For Use OnSoft Materials
Included Angle90 deg
Inscribed Circle5.4 mm
Insert Size50204
Insert StyleSOMX
ISO CodeSOMX 050204-GF IC908
Length5.4 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesDR-TWIST
ShapeSquared
Thickness2.4 mm
Width5.4 mm
