Iscar ISCAR 5506337

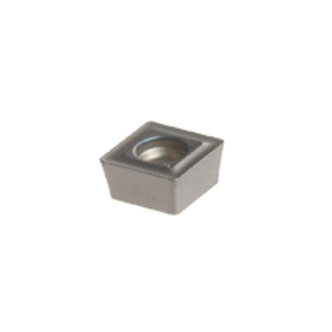

Iscar 5506337 DR-TWIST Indexable Drill Insert, Squared, 50204 Insert Size, SOMX Insert Style, 2.4 mm THK, 5.4 mm Inscribed Circle, Manufacturers Grade: IC908, Material Grade: C1, C2, C6, C7
Invoice description:
Somx 050204-dt Ic908
Factory Order
Iscar Indexable Drill Insert, Series: DR-TWIST, SOMX Insert, 50204 Insert, Squared, 5.4 mm Inscribed Circle, 2.4 mm Thickness, 5.4 mm Width, 5.4 mm Length, DT Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC908, 90 deg Included Angle, ISO Code: SOMX 050204-DT IC908, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7
Features
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor medium-to-high feed rates general applications
ChipbreakerDT
Corner Radius0.4 mm
FinishPVD-TiAlN Coated
Included Angle90 deg
Inscribed Circle5.4 mm
Insert Size50204
Insert StyleSOMX
ISO CodeSOMX 050204-DT IC908
Length5.4 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesDR-TWIST
ShapeSquared
Thickness2.4 mm
Width5.4 mm
Additional Information
Country of OriginIL
