Iscar ISCAR 5505630

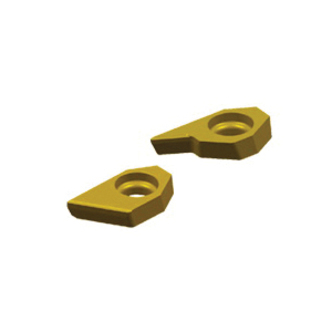

Iscar 5505630 PRE-THREAD Indexable Drill Insert, Special Parallelogram Shape, 9030045 Insert, XCGT Insert, 3.3 mm THK, Manufacturers Grade: IC508

UNSPSC: 23242511
Manufacturer PN: 5505630
$20.36 EA
Factory Order
Estimated to ship in 14 days
QTY:

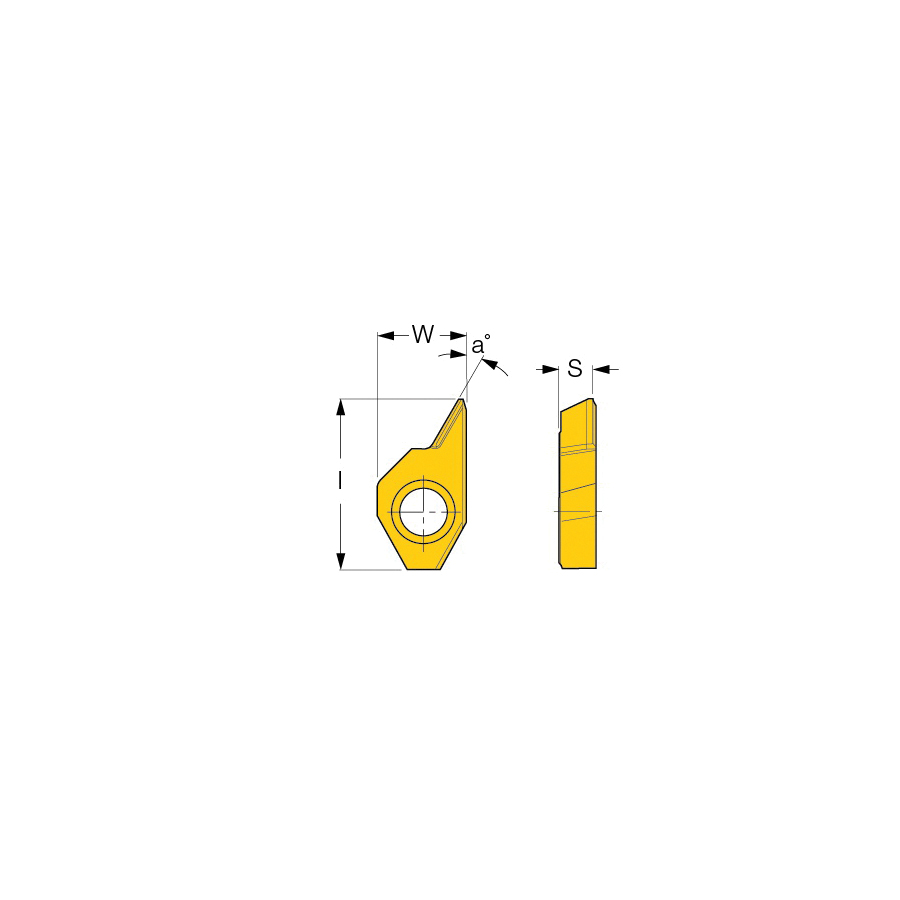

Iscar Indexable Drill Insert, Series: PRE-THREAD, XCGT Insert, 9030045 Insert, Special Parallelogram, 3.3 mm Thickness, 8.5 mm Width, 16 mm Length, DT Chipbreaker, Manufacturers Grade: IC508, 45 deg Included Angle, ISO Code: XCGT 09030045-DT IC508, Carbide, PVD-TiCN+TiN Coated

  • Features

  • Grade IC508 - designed for machining wide range of materials at low-to medium cutting speeds, interrupted cut and unfavorable conditions
  • Excellent notch wear and built-up edge resistance

Specifications

ApplicationFor chamfering and drilling in one operation
ChipbreakerDT
FinishPVD-TiCN+TiN Coated
Included Angle45 deg
Insert Size9030045
Insert StyleXCGT
ISO CodeXCGT 09030045-DT IC508
Length16 mm
Manufacturers GradeIC508
MaterialCarbide
SeriesPRE-THREAD
ShapeSpecial Parallelogram
Thickness3.3 mm
Width8.5 mm
