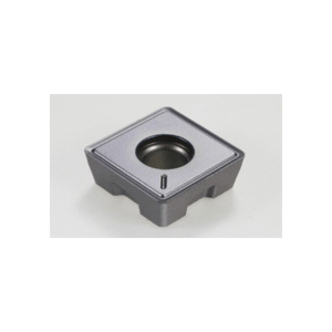

Iscar ISCAR 5505528
Iscar 5505528 DR-TWIST Indexable Drill Insert, Squared Shape, Material Grade: C1, C2, C6, C7, 160512 Insert, SOMT Insert, 5.56 mm THK, 16 mm Inscribed Circle, For Use On Soft Materials, Manufacturers Grade: IC908
Factory Order
Iscar Indexable Drill Insert, Series: DR-TWIST, SOMT Insert, 160512 Insert, Squared Shape, 16 mm Inscribed Circle, 5.56 mm Thickness, 16 mm Width, 16 mm Length, GF Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC908, 90 deg Included Angle, ISO Code: SOMT 160512-GF IC908, For Use On: Soft Materials, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7
Features
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor low-to-medium feed rates applications
ChipbreakerGF
Corner Radius1.2 mm
FinishPVD-TiAlN Coated
For Use OnSoft Materials
Included Angle90 deg
Inscribed Circle16 mm
Insert Size160512
Insert StyleSOMT
ISO CodeSOMT 160512-GF IC908
Length16 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesDR-TWIST
ShapeSquared
Thickness5.56 mm
Width16 mm
