Iscar ISCAR 5505512

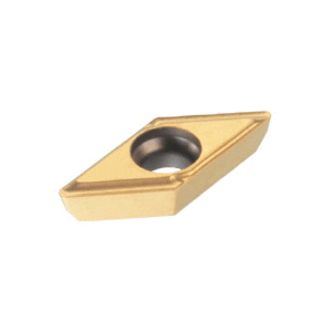

Iscar 5505512 PRE-THREAD Indexable Drill Insert, Parallelogram Shape, 60204 Insert, AOMT Insert, 1.96 mm THK, Manufacturers Grade: IC508

UNSPSC: 23242511
Manufacturer PN: 5505512
$14.52 EA
Factory Order
Estimated to ship in 14 days
QTY:

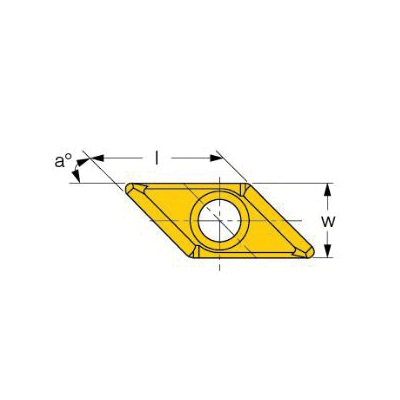

Iscar Indexable Drill Insert, Series: PRE-THREAD, AOMT Insert, 60204 Insert, Parallelogram Shape, 1.96 mm Thickness, 4.5 mm Width, 5.66 mm Length, DT Chipbreaker, Manufacturers Grade: IC508, 85 deg Included Angle, ISO Code: AOMT 060204-45DT IC508, Carbide, PVD-TiCN+TiN Coated

  • Features

  • Grade IC508 - a tough submicron substrate, TiCN+TiN PVD-coated grade
  • Excellent notch wear and built-up edge resistance

Specifications

ApplicationFor machining wide range of materials at low to medium cutting speeds, interrupted cut and unfavorable conditions
ChipbreakerDT
FinishPVD-TiCN+TiN Coated
Included Angle85 deg
Insert Size60204
Insert StyleAOMT
ISO CodeAOMT 060204-45DT IC508
Length5.66 mm
Manufacturers GradeIC508
MaterialCarbide
SeriesPRE-THREAD
ShapeParallelogram
Thickness1.96 mm
Width4.5 mm
