Iscar ISCAR 5505289

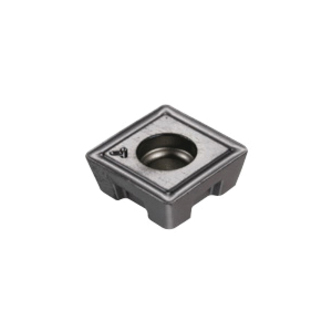

Iscar 5505289 DR-TWIST Indexable Drill Insert, Squared Shape, Material Grade: C1, C2, C6, C7, 120408 Insert, SOMT Insert, 0.187 in THK, 1/2 in Inscribed Circle, Manufacturers Grade: IC908
Invoice description:
Somt 120408-dt Ic908
Factory Order
Iscar Indexable Drill Insert, Series: DR-TWIST, SOMT Insert, 120408 Insert, Squared, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, DT Chipbreaker, 0.031 in Corner Radius, Manufacturers Grade: IC908, 90 deg Included Angle, ISO Code: SOMT 120408-DT IC908, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7
Features
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions

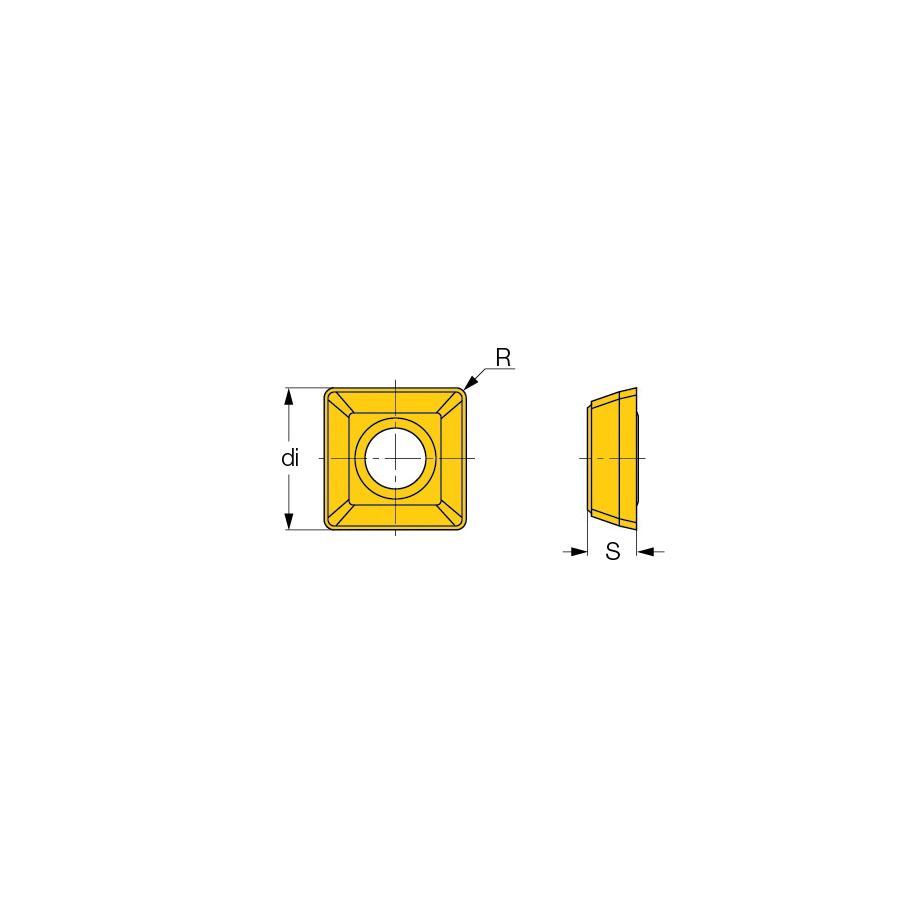

Specifications
ApplicationFor medium-to-high feed rates general applications
ChipbreakerDT
Corner Radius0.031 in
FinishPVD-TiAlN Coated
Included Angle90 deg
Inscribed Circle1/2 in
Insert Size120408
Insert StyleSOMT
ISO CodeSOMT 120408-DT IC908
Length1/2 in
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesDR-TWIST
ShapeSquared
Thickness0.187 in
Width1/2 in
Additional Information
Country of OriginIL
