Iscar ISCAR 5505233

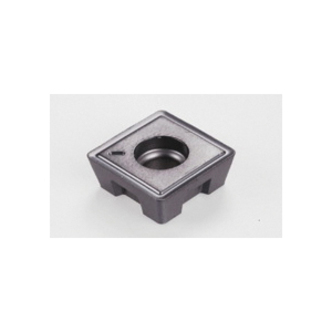

Iscar 5505233 DR-TWIST Single Sided Indexable Drill Insert, Squared Shape, Material Grade: C1, C2, C6, C7, 120408 Insert, SOMT Insert, 4.76 mm THK, 12.7 mm Inscribed Circle, For Use On Soft Materials, Manufacturers Grade: IC908
Factory Order

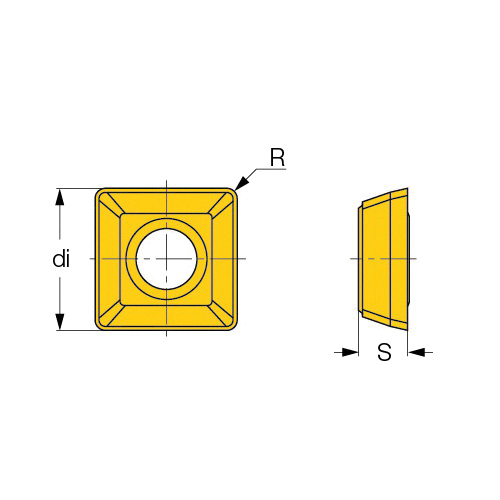

Iscar Indexable Drill Insert, Single Sided, Series: DR-TWIST, SOMT Insert, 120408 Insert, Squared, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, GF Chipbreaker, 0.8 mm Corner Radius, 0.22 in Hole Dia, Manufacturers Grade: IC908, 90 deg Included Angle, ISO Code: SOMT 120408-GF IC908, Soft Materials For Use On, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7
Features
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor low-to-medium feed rates applications
ChipbreakerGF
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
For Use OnSoft Materials
Hole Diameter0.22 in
Included Angle90 deg
Inscribed Circle12.7 mm
Insert Size120408
Insert StyleSOMT
ISO CodeSOMT 120408-GF IC908
Length12.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesDR-TWIST
ShapeSquared
Thickness4.76 mm
TypeSingle Sided
Width12.7 mm
