Iscar ISCAR 5504864

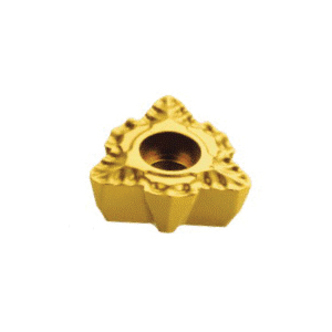

Iscar 5504864 DZDRILLS Single Sided Indexable Drill Insert, ANSI Code: WOLH4 GF IC908, Trigon Shape, Material Grade: H, K, M, P, S, 4 Insert, WOLH Insert, 4.76 mm THK, 12 mm Inscribed Circle, Manufacturers Grade: IC908
Factory Order
Iscar Indexable Drill Insert, Single Sided, Series: DZDRILLS, WOLH Insert, 4 Insert, Trigon, 12 mm Inscribed Circle, 4.76 mm Thickness, GF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC908, 80 deg Included Angle, ANSI Code: WOLH4 GF IC908, ISO Code: WOLH 080404-GF IC908, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- Inserts for DZ drills with serrated cutting edges and a tight chipformer
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions

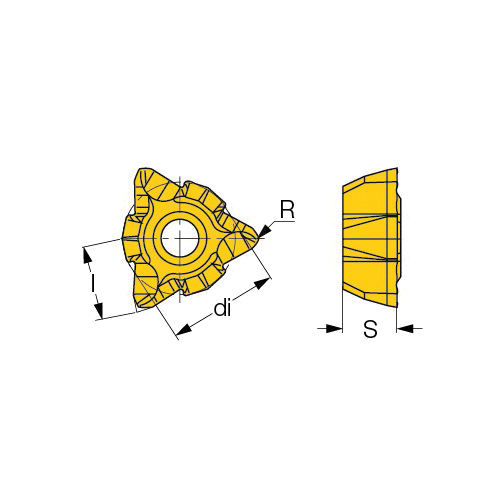

Specifications
ApplicationFor chip splitting at low-to-medium feeds applications
ANSI CodeWOLH4 GF IC908
ChipbreakerGF
Corner Radius0.4 mm
FinishPVD Coated
Included Angle80 deg
Inscribed Circle12 mm
Insert Size4
Insert StyleWOLH
ISO CodeWOLH 080404-GF IC908
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesDZDRILLS
ShapeTrigon
Thickness4.76 mm
TypeSingle Sided
