Iscar ISCAR 5504860

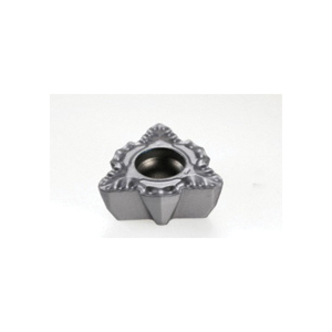

Iscar 5504860 DZDRILLS Indexable Drill Insert, ANSI Code: WOLH2.5-1-GF IC908, Trigon Shape, Material Grade: C1, C2, C6, C7, 251 Insert, WOLH Insert, 3.81 mm THK, 8 mm Inscribed Circle, Manufacturers Grade: IC908
Factory Order
Iscar Indexable Drill Insert, Series: DZDRILLS, WOLH Insert, 251 Insert, Trigon, 8 mm Inscribed Circle, 3.81 mm Thickness, 5 mm Length, GF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC908, 80 deg Included Angle, ANSI Code: WOLH2.5-1-GF IC908, ISO Code: WOLH 05T304-GF IC908, Carbide, PVD Coated, Material Grade: C1, C2, C6, C7
Features
- Inserts for DZ drills with serrated cutting edges and a wide chipformer
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor chip splitting at low-to-medium feeds applications
ANSI CodeWOLH2.5-1-GF IC908
ChipbreakerGF
Corner Radius0.4 mm
FinishPVD Coated
Included Angle80 deg
Inscribed Circle8 mm
Insert Size251
Insert StyleWOLH
ISO CodeWOLH 05T304-GF IC908
Length5 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesDZDRILLS
ShapeTrigon
Thickness3.81 mm
