Iscar ISCAR 5504859

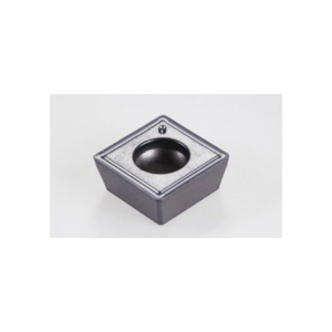

Iscar 5504859 DR-TWIST Single Sided Indexable Drill Insert, Squared Shape, Material Grade: C1, C2, C6, C7, 09T306 Insert, SOMT Insert, 3.81 mm THK, 9 mm Inscribed Circle, For Use On Soft Materials, Manufacturers Grade: IC908
Invoice description:
Somt 09t306-gf Ic908
Factory Order

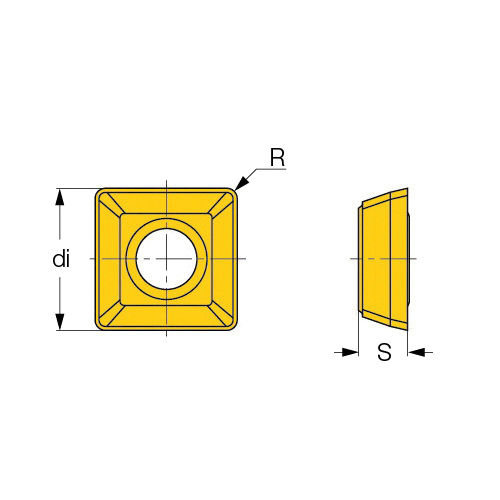

Iscar Indexable Drill Insert, Single Sided, Series: DR-TWIST, SOMT Insert, 09T306 Insert, Squared, 9 mm Inscribed Circle, 3.81 mm Thickness, 9 mm Width, 9 mm Length, GF Chipbreaker, 0.6 mm Corner Radius, 0.133 in Hole Dia, Manufacturers Grade: IC908, 90 deg Included Angle, ISO Code: SOMT 09T306-GF IC908, Soft Materials For Use On, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7
Features
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor low-to-medium feed rates applications
ChipbreakerGF
Corner Radius0.6 mm
FinishPVD-TiAlN Coated
For Use OnSoft Materials
Hole Diameter0.133 in
Included Angle90 deg
Inscribed Circle9 mm
Insert Size09T306
Insert StyleSOMT
ISO CodeSOMT 09T306-GF IC908
Length9 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesDR-TWIST
ShapeSquared
Thickness3.81 mm
TypeSingle Sided
Width9 mm
