Iscar ISCAR 5504754

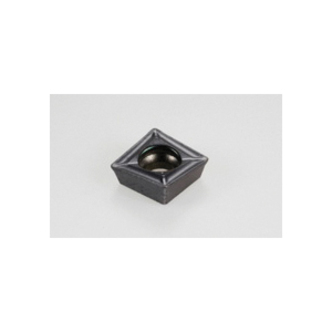

Iscar 5504754 DRDRILLS Single Sided Indexable Drill Insert, Special Parallelogram Shape, Material Grade: H, K, M, P, S, 60204 Insert, XOMT Insert, 2.56 mm THK, 6.16 mm Inscribed Circle, Manufacturers Grade: IC908
Invoice description:
Xomt 060204-dt Ic908
Factory Order
Iscar Indexable Drill Insert, Single Sided, Series: DRDRILLS, XOMT Insert, 60204 Insert, Special Parallelogram Shape, 6.16 mm Inscribed Circle, 2.56 mm Thickness, DT Chipbreaker, 0.4 mm Corner Radius, 0.11 in Diameter Hole, Manufacturers Grade: IC908, 85 deg Included Angle, ISO Code: XOMT 060204-DT IC908, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor DR drills and A-SXFOR/L boring bars
ChipbreakerDT
Corner Radius0.4 mm
FinishPVD Coated
Hole Diameter0.11 in
Included Angle85 deg
Inscribed Circle6.16 mm
Insert Size60204
Insert StyleXOMT
ISO CodeXOMT 060204-DT IC908
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesDRDRILLS
ShapeSpecial Parallelogram
Thickness2.56 mm
TypeSingle Sided
