Iscar ISCAR 5669459

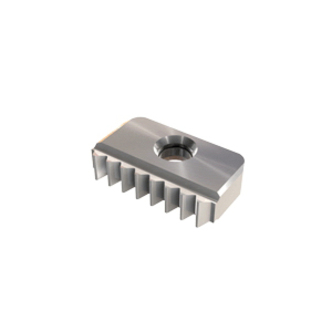

Iscar 5669459 MILLTHREAD Threading Insert, MTLNHU Insert, Rectangle Shape, 16 TPI, Internal Thread, UN Thread, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
Mt Lnhu 1403 I16un 908
Factory Order
Iscar Threading Insert, Series: MILLTHREAD, MTLNHU Insert, Rectangle Shape, Internal Thread, UN Thread Standard, 16 Threads per Inch, 3.2 mm Thickness, 7.9 mm Width, 14 mm Length, ISO Code: MT LNHU 1403 I16UN, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
FinishPVD-TiAlN Coated
Insert StyleMTLNHU
ISO CodeMT LNHU 1403 I16UN
Length14 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesMILLTHREAD
ShapeRectangle
Thickness3.2 mm
Thread StandardUN
Thread TypeInternal
Threads per Inch16
Width7.9 mm
