Iscar ISCAR 5901523

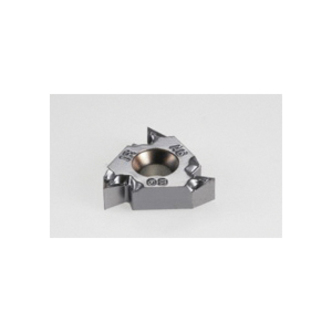

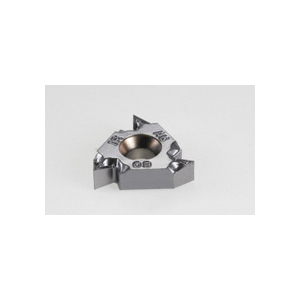

Iscar 5901523 ISCARTHREAD Laydown Threading Insert, 16IRMAG Insert, Triangular Shape, 8 to 48 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
16irm Ag 60 Ic908
Factory Order

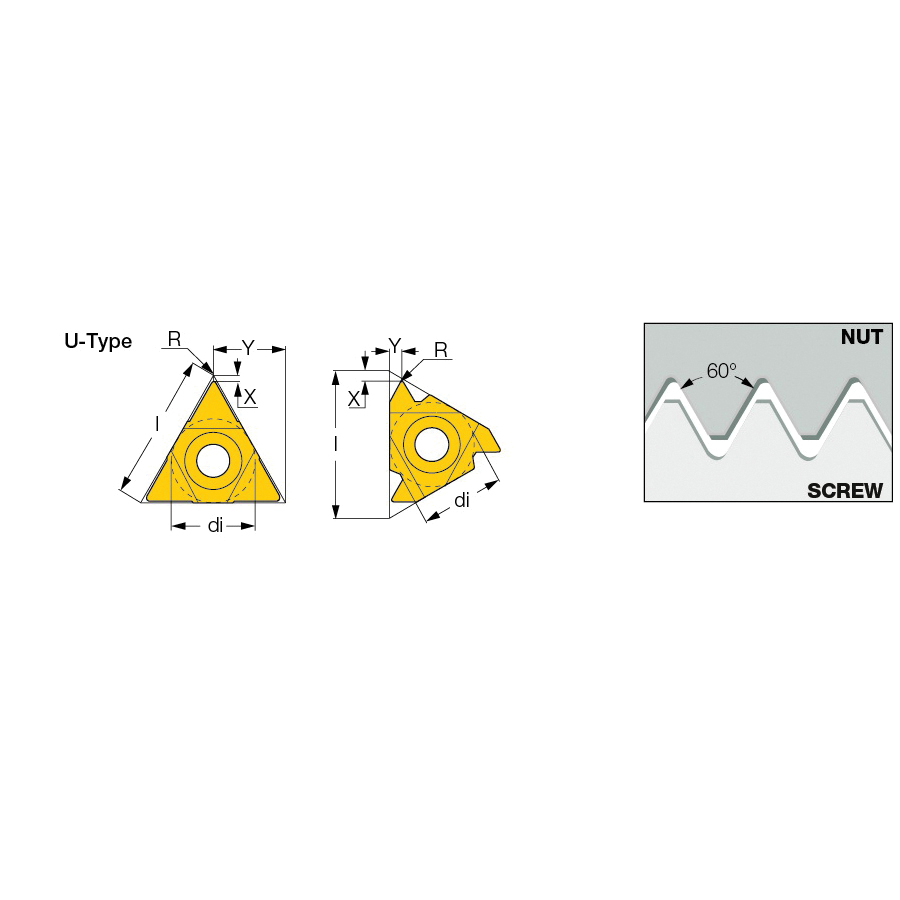

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IRMAG Insert, 16 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 3 mm Pitch, 8 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IRM AG 60 IC908, M Chipbreaker, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationInternal Thread Milling, Internal Threading and General Industry
ChipbreakerM
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16IRMAG
ISO Code16IRM AG 60 IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 3 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch8 to 48
TypeLaydown
Additional Information
Country of OriginIS
