Iscar ISCAR 5901349

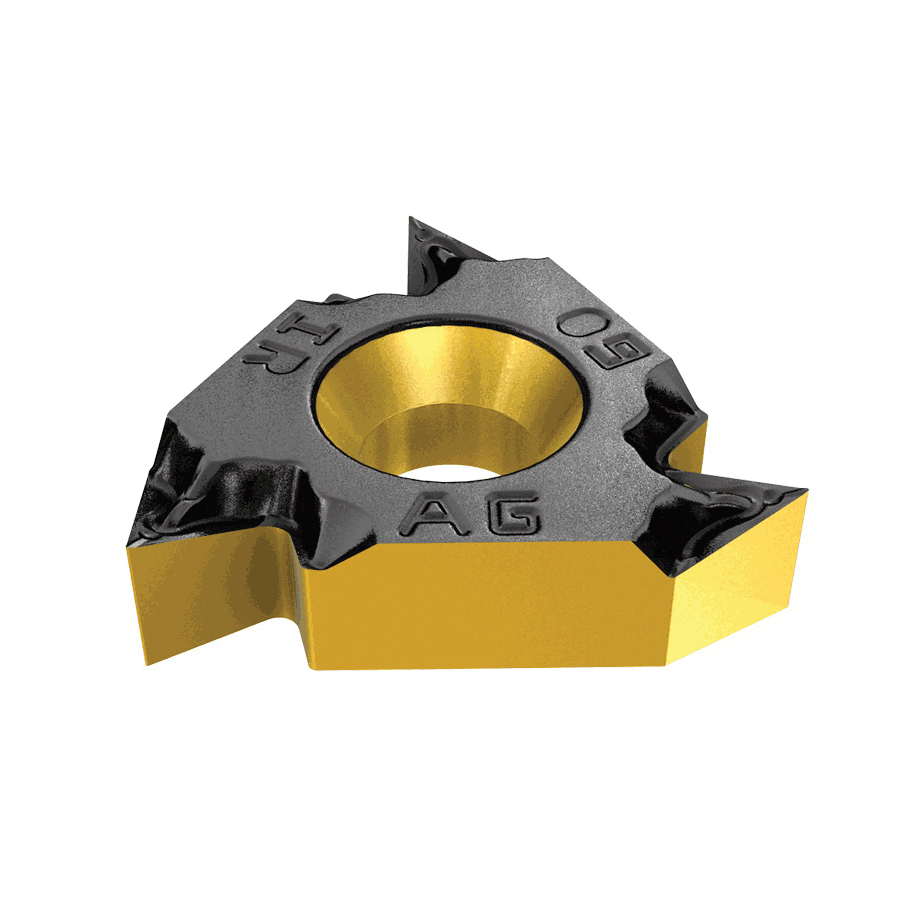

Iscar 5901349 ISCARTHREAD Laydown Threading Insert, 06ILA Insert, Triangular Shape, 20 to 48 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.25 mm Pitch, Left Hand Cutting, Manufacturers Grade: IC228, Material Grade: H, K, M, P, S
Invoice description:
06il A 60 Ic228
Factory Order

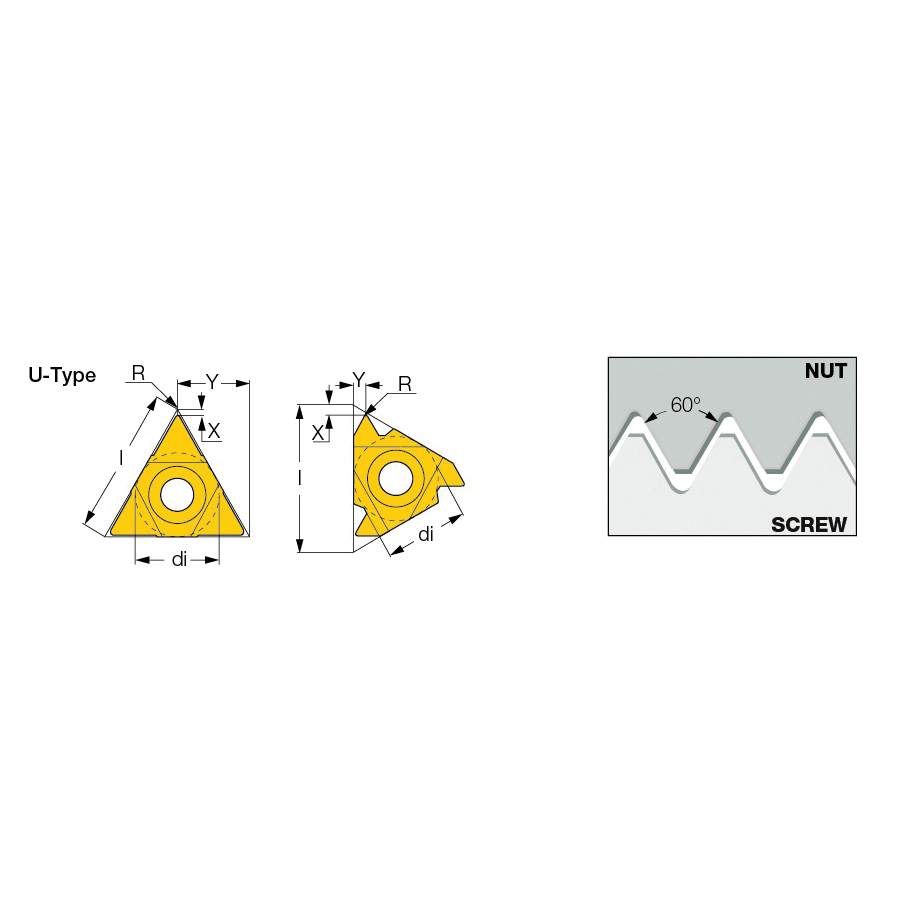

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 06ILA Insert, 6 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.25 mm Pitch, 20 to 48 Threads per Inch, 3.97 mm Inscribed Circle, 1.12 mm Thickness, 6 mm Length, ISO Code: 06IL A 60 IC228, 0.04 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC228, Left Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
Corner Radius0.04 mm
Cutting DirectionLeft Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Inscribed Circle3.97 mm
Insert Size6
Insert Style06ILA
ISO Code06IL A 60 IC228
Length6 mm
Manufacturers GradeIC228
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 1.25 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness1.12 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch20 to 48
TypeLaydown
Additional Information
Country of OriginIL
