Iscar ISCAR 5901568

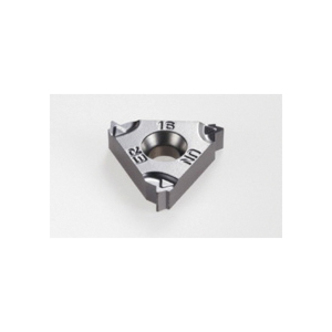

Iscar 5901568 ISCARTHREAD Laydown Threading Insert, 16ERM Insert, Triangular Shape, 16 TPI, External Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5901568
$17.38 EA
Factory Order
Estimated to ship in 14 days
QTY:

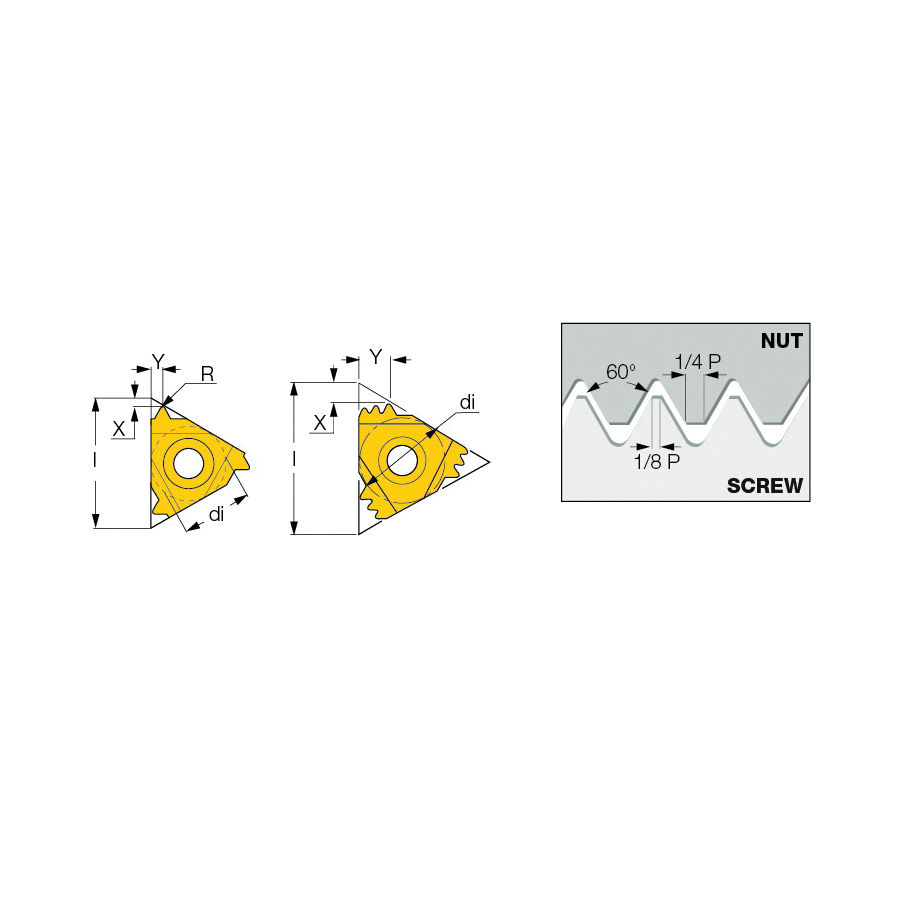

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERM Insert, 16 Insert, Triangular Shape, External Thread, UN Thread Standard, 16 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM 16 UN IC908, M Chipbreaker, 0.19 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationGeneral Industry
ChipbreakerM
Corner Radius0.19 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ERM
ISO Code16ERM 16 UN IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardUN
Thread TypeExternal
Threads per Inch16
TypeLaydown
