Iscar ISCAR 5901567

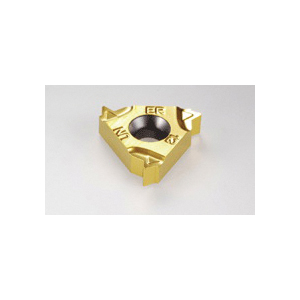

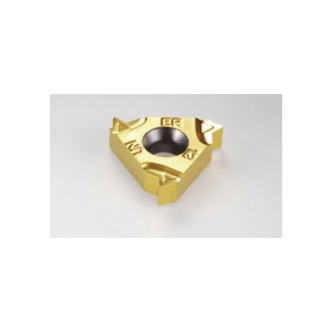

Iscar 5901567 ISCARTHREAD Laydown Threading Insert, 16ERM Insert, Triangular Shape, 12 TPI, External Thread, UN Thread, Right Hand Cutting, Manufacturer's Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5901567
$17.38 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERM Insert, 16 Insert, Triangular Shape, External Thread, UN Thread Standard, 12 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM 12 UN IC908, M Chipbreaker, 0.25 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationGeneral Industry
TypeLaydown
SeriesISCARTHREAD
Insert Style16ERM
Insert Size16
ShapeTriangular
Thread TypeExternal
Thread StandardUN
Threads per Inch12
Inscribed Circle9.52 mm
