Iscar ISCAR 5921210

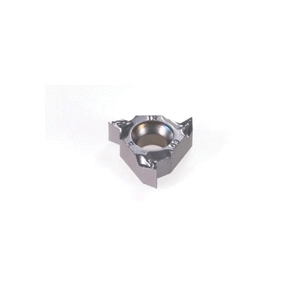

Iscar 5921210 ISCARTHREAD Laydown Threading Insert, 11IRMA Insert, Triangular Shape, 16 to 48 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
Lt11nra60 Kc5025 Kmt Lt Threading Insert
Factory Order
Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 11IRMA Insert, 11 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.5 mm Pitch, 16 to 48 Threads per Inch, 6.35 mm Inscribed Circle, 3.2 mm Thickness, 11 mm Length, ISO Code: 11IRM A 60 IC908, M Chipbreaker, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size11
Insert Style11IRMA
ISO Code11IRM A 60 IC908
Length11 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 1.5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.2 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch16 to 48
TypeLaydown
Additional Information
Country of OriginIL
