SGS SGS 36502

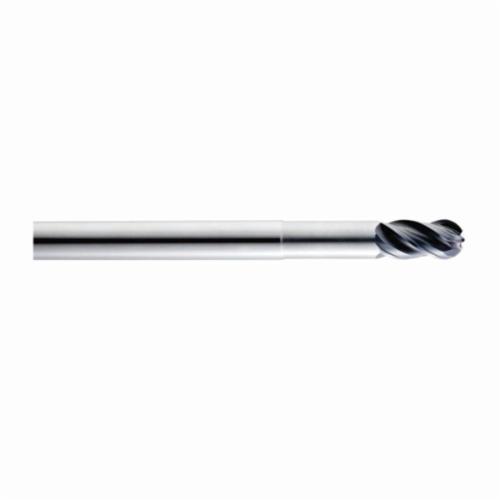

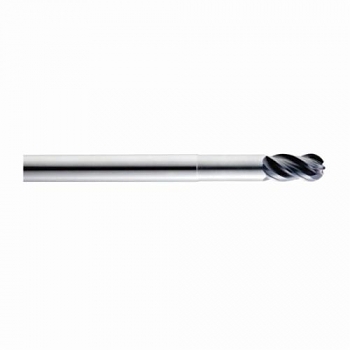

SGS 36502 ZPB Ball Nose End Fractional High Performance High Performance End Mill, 3/4 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 6 in OAL, TX Coated

Invoice description: Ser Z1lb 3/4 Ti-a Long Reach

UPC: 691781365022
UNSPSC: 23242511
Manufacturer PN: 36502
$467.26 EA
Factory Order
Estimated to ship in 28 days
QTY:


SGS High Performance End Mill, Ball Nose End Fractional High Performance, Series: ZPB, 3/4 in Cutter Dia, 6 in Overall Length, 1-1/2 in Length of Cut, 4 Flutes, Spiral Flute, 3/4 in Shank Dia, Right Hand Cutting, 35 to 38 deg Helix Angle, Straight Shank, 2-1/2 in Shank Length, Micrograin Solid Carbide, TX Coated

  • Features

  • Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design changes the cutting angle to improve harmonics
  • Long reach design allows for deeper and faster cuts
  • Ball nose design ideal for finishing operations in complex workpieces
  • Recommended for materials 45 HRc (420 Bhn)

Specifications

ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter3/4 in
Cutting DirectionRight Hand
FinishTX Coated
Flute TypeSpiral
Helix Angle35 to 38 deg
Length of Cut1-1/2 in
MaterialMicrograin Solid Carbide
Number of Flutes4
Overall Length6 in
SeriesZPB
Shank Diameter3/4 in
Shank Length2-1/2 in
Shank TypeStraight
TypeBall Nose End Fractional High Performance

Additional Information

Country of OriginUS
