SGS SGS 34671

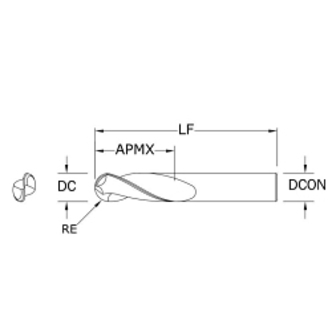

SGS 34671 47B Ball Nose End Fractional High Performance Regular Length High Performance End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, TB Coated
Invoice description:
End Mill 1/4x3/4x2-1/2 2 -fl Ball S-carb
UPC: 691781346717
UNSPSC:
23242511
Manufacturer PN: 34671
$51.54 EA
Factory OrderEstimated to ship in 14 days
SGS High Performance End Mill, Ball Nose End Fractional High Performance Regular Length, Series: 47B, 1/4 in Cutter Dia, 2-1/2 in Overall Length, 3/4 in Length of Cut, 2 Flutes, Spiral Flute, 1/4 in Shank Dia, Right Hand Cutting, 35 deg Helix Angle, Straight Shank, 1-3/4 in Shank Length, Micrograin Solid Carbide, TB Coated
Features
- Circular land reduces edge aggressiveness for varied speed and feed rates
- Two flutes effectively manage the large size and volume of chips produced during the aggressive machining process
- Excellent balance at high speeds and aggressive plunging capability
- Ball nose design ideal for finishing operations in complex workpieces
- Recommended for materials 150 Bhn (7 HRc)
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishTB Coated
Flute TypeSpiral
Helix Angle35 deg
Length of Cut3/4 in
MaterialMicrograin Solid Carbide
Number of Flutes2
Overall Length2-1/2 in
Series47B
Shank Diameter1/4 in
Shank Length1-3/4 in
Shank TypeStraight
TypeBall Nose End Fractional High Performance Regular Length
Additional Information
Country of OriginUS
