SGS SGS 36480 2.700 REACH

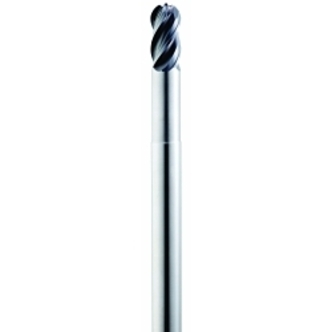

SGS 36480 ZPB Ball Nose End Fractional High Performance High Performance End Mill, 1/4 in Dia Cutter, 1/2 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 4 in OAL, TX Coated
Invoice description:
Ser Z1lb 1/4 Ti-a Long R Ea Ch 2.700 Reach
UPC: 691781364803
UNSPSC:
23242511
Manufacturer PN: 36480
$97.37 EA
Factory OrderEstimated to ship in 8 days
SGS End Mill, Ball Nose End Fractional High Performance, Series: ZPB, 1/4 in Diameter Cutter, 4 in Overall Length, 1/2 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 35 to 38 deg Helix Angle, Straight Shank, 2-3/4 in Shank Length, Micrograin Solid Carbide, TX Coated Finish
Features
- Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
- Unequal helix design changes the cutting angle to improve harmonics
- Long reach design allows for deeper and faster cuts
- Ball nose design ideal for finishing operations in complex workpieces
- Recommended for materials 45 HRc (420 Bhn)
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishTX Coated
Flute TypeSpiral
Helix Angle35 to 38 deg
Length of Cut1/2 in
MaterialMicrograin Solid Carbide
Number of Flutes4
Overall Length4 in
SeriesZPB
Shank Diameter1/4 in
Shank Length2-3/4 in
Shank TypeStraight
TypeBall Nose End Fractional High Performance
Additional Information
Country of OriginUS
