SGS SGS 31784

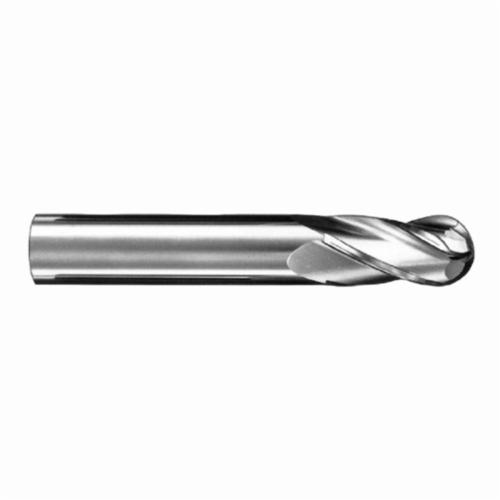

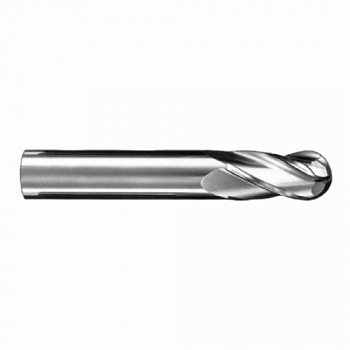

SGS 31784 L1B Ball Nose End Long Length Fractional End Mill, 3/8 in Dia Cutter, 1-1/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL, TC Coated
Invoice description:
Ser 1lb End Mill 3/8 Ti-c
In stock
(2)
SGS End Mill, Ball Nose End Long Length Fractional, Series: L1B, 3/8 in Diameter Cutter, 3 in Overall Length, 1-1/8 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, 1-7/8 in Shank Length, Micrograin Solid Carbide, TC Coated Finish
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter3/8 in
Cutting DirectionRight Hand
FinishTC Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1-1/8 in
MaterialMicrograin Solid Carbide
Number of Flutes4
Overall Length3 in
SeriesL1B
Shank Diameter3/8 in
Shank Length1-7/8 in
Shank TypeStraight
TypeBall Nose End Long Length Fractional
Additional Information
Country of OriginUS
Sds
Rohs
