SGS SGS 36346

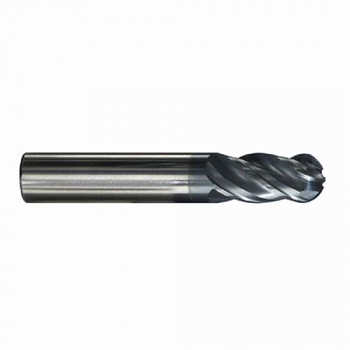

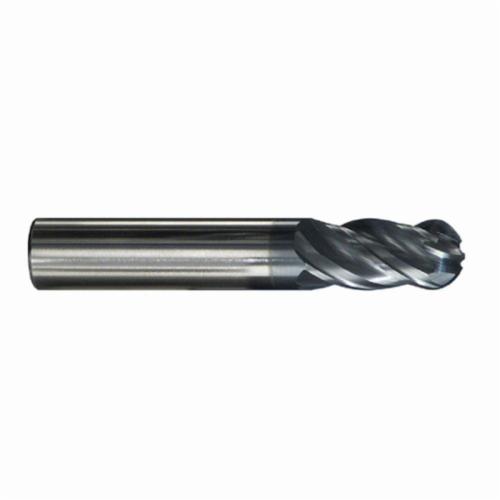

SGS 36346 Z1B Ball Nose End Fractional High Performance High Performance End Mill, 3/8 in Dia Cutter, 7/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TA Coated

Invoice description: End Mill Ball 3/8x7/8x2- 1/2 4-fl Solid Carbide A

UPC: 691781363462
UNSPSC: 23242511
Manufacturer PN: 36346
$69.94 EA
Factory Order
Estimated to ship in 7 days
QTY:


SGS High Performance End Mill, Ball Nose End Fractional High Performance, Series: Z1B, 3/8 in Cutter Dia, 2-1/2 in Overall Length, 7/8 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Dia, Right Hand Cutting, 35 to 38 deg Helix Angle, Straight Shank, 1-5/8 in Shank Length, Micrograin Solid Carbide, TA Coated

  • Features

  • Unequal helix design aids in damaging harmonics by changing the angle at which each cutting edge enters and exits the material
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Optimal material removal rates through increased feed and depths of cut
  • Ball nose design ideal for finishing operations in complex workpieces
  • Recommended for materials 45 HRc (420 Bhn)

Specifications

ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter3/8 in
Cutting DirectionRight Hand
FinishTA Coated
Flute TypeSpiral
Helix Angle35 to 38 deg
Length of Cut7/8 in
MaterialMicrograin Solid Carbide
Number of Flutes4
Overall Length2-1/2 in
SeriesZ1B
Shank Diameter3/8 in
Shank Length1-5/8 in
Shank TypeStraight
TypeBall Nose End Fractional High Performance

Additional Information

Country of OriginUS
