Iscar ISCAR 6405445

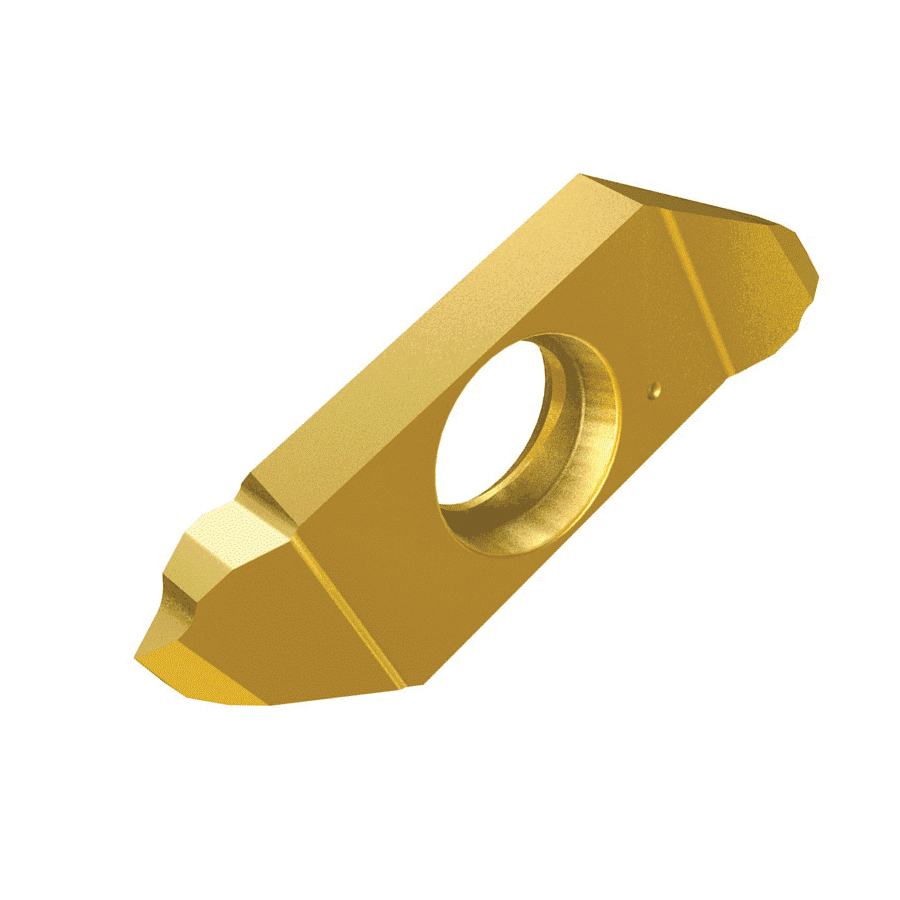

Iscar 6405445 SWISSCUT Threading Insert, SCIR Insert, Rectangle Shape, 15 to 28 TPI, External Thread, 60 deg Partial Profile Thread, 0.9 to 1.7 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC1008, Material Grade: H, K, M, N, P, S
Invoice description:
Scir 22-mtr010 Ic1008
Factory Order

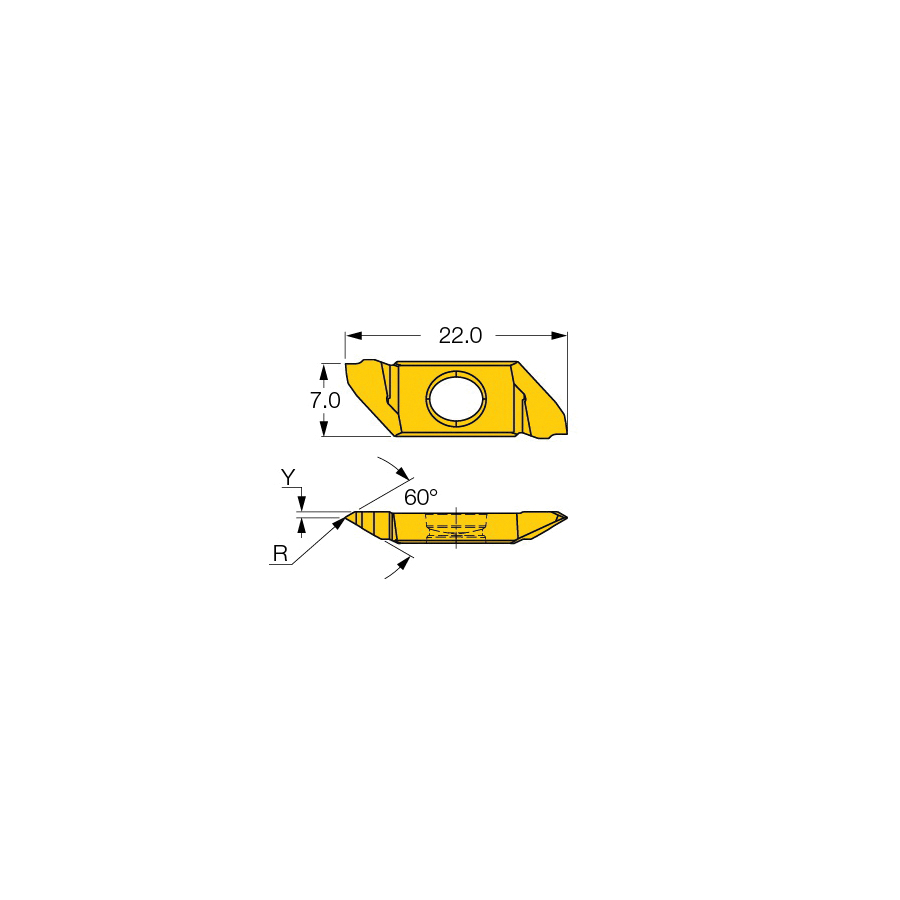

Iscar Threading Insert, Series: SWISSCUT, SCIR Insert, 22 Insert, Rectangle Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.9 to 1.7 mm Pitch, 15 to 28 Threads per Inch, 7 mm Width, 22 mm Length, ISO Code: SCIR 22-MTR010 IC1008, MT Chipbreaker, 0.1 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC1008, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Specifications
ApplicationExternal Groove Turn Threading
ChipbreakerMT
Corner Radius0.1 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN+TiN Coated
Included Angle60 deg
Insert Size22
Insert StyleSCIR
ISO CodeSCIR 22-MTR010 IC1008
Length22 mm
Manufacturers GradeIC1008
MaterialCarbide
Material GradeH, K, M, N, P, S
Pitch0.9 to 1.7 mm
SeriesSWISSCUT
ShapeRectangle
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch15 to 28
Width7 mm
Additional Information
Country of OriginIS
