Iscar ISCAR 6403480

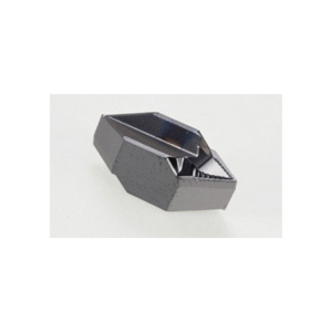

Iscar 6403480 CUT-GRIP Double End Threading Insert, TIPI Insert, Rectangle Shape, 8 TPI, Internal Thread, 60 deg Partial Profile Thread, 3.19 mm Pitch, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
Tipi 5.4mt-0.20 Ic908
Factory Order

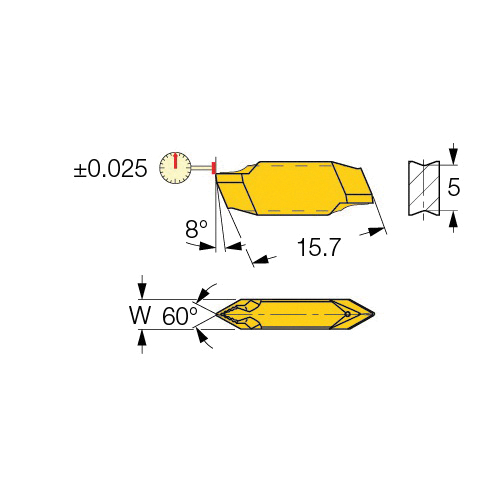

Iscar Threading Insert, Double End, Series: CUT-GRIP, TIPI Insert, 5.4 Insert, Rectangle Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 3.19 mm Pitch, 8 Threads per Inch, 5.4 mm Thickness, 15.7 mm Length, ISO Code: TIPI 5.4MT-0.20 IC908, 0.2 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
Corner Radius0.2 mm
FinishPVD-TiAlN Coated
Included Angle60 deg
Insert Size5.4
Insert StyleTIPI
ISO CodeTIPI 5.4MT-0.20 IC908
Length15.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch3.19 mm
SeriesCUT-GRIP
ShapeRectangle
Thickness5.4 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch8
TypeDouble End
Additional Information
Country of OriginIL
