Iscar ISCAR 6403359

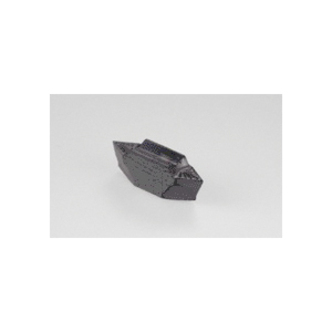

Iscar 6403359 CUT-GRIP Double End Threading Insert, GEPI Insert, 28 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.9 mm Pitch, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6403359
$48.04 EA
Factory Order
Estimated to ship in 14 days
QTY:

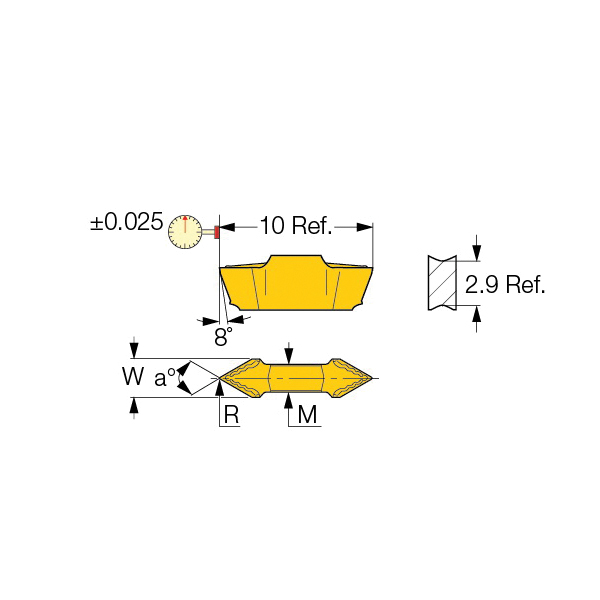

Iscar Threading Insert, Double End, Series: CUT-GRIP, GEPI Insert, 2.5 Insert, Internal Thread, 60 deg Partial Profile Thread Standard, 0.9 mm Pitch, 28 Threads per Inch, 2.5 mm Thickness, 10 mm Length, ISO Code: GEPI 2.5-MT0.05 IC908, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

Corner Radius0.05 mm
FinishPVD-TiAlN Coated
Included Angle60 deg
Insert Size2.5
Insert StyleGEPI
ISO CodeGEPI 2.5-MT0.05 IC908
Length10 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.9 mm
SeriesCUT-GRIP
Thickness2.5 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch28
TypeDouble End
